Y19A YO20 Y24 Y26 YT27 YT28 YT29A
Jinquan
84671900
Jinquan Y6 Y19A YO20 Y24 Y26 YT27 YT28 YT29A YN27C YSP45 YT24 YT26 Pneumatic Rock Drill Jack Hammer
A number of patented technology makes our products have many outstanding features: small original driving force, fast speed, stability control, low noise, simple, reliable, easy maintenance, flexible and mobile etc.
Our pneumatic rock drills could be divided into two parts, one is hand-held rock drill, the other is air-leg rock drill. Both of them have excellent drilling performance.
For hand-held rock drills, we have Y6, YO20, Y19A Y24 and Y26. Among them, the Y6, YO20 and Y24 are widely used in quarrying or construction industry.

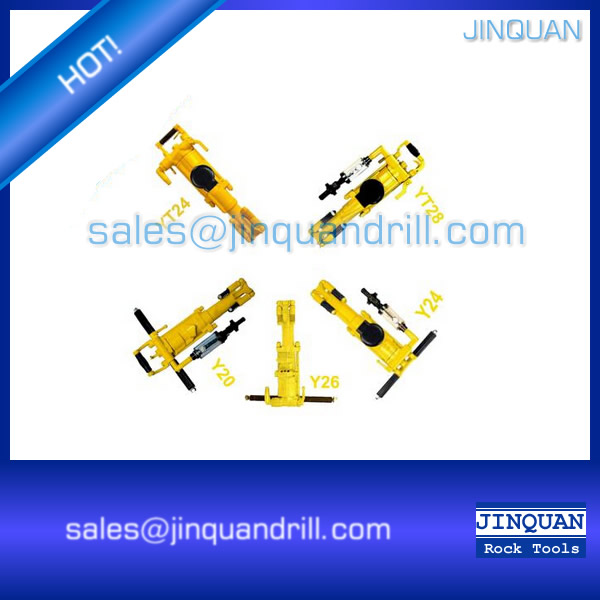

A.Pneumatic rock drilling machine includes: Y6, YO20, Y24, and Y26(hand held), YT24, YT26, YT27 and YT28 (air leg), YT29A perforadora neumática.
This type rock drills use compressed air as power, mainly used in construction sites, various types of mines, tunnel, railways, water conservancy construction and national defense construction areas for drilling operations.

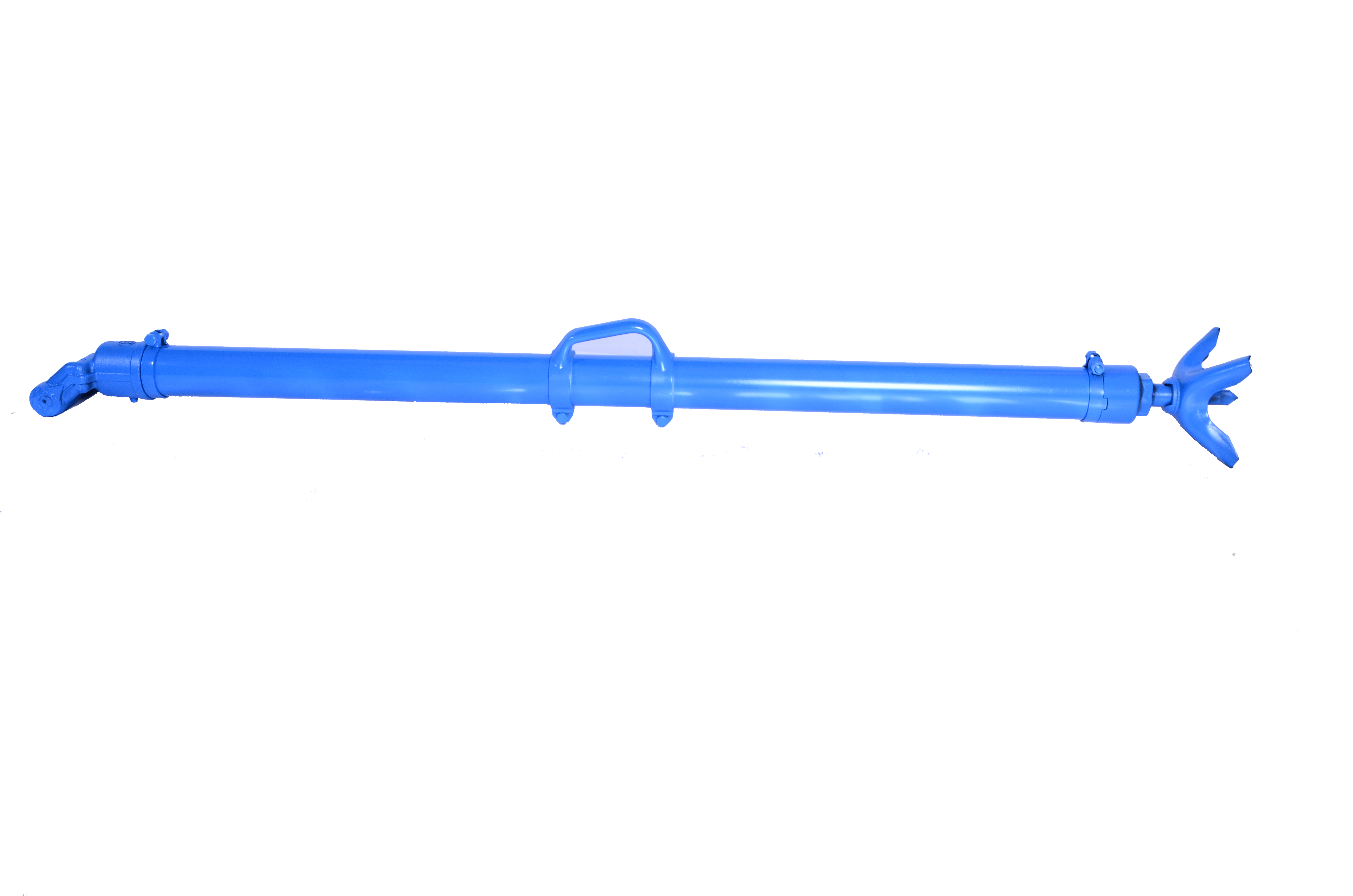

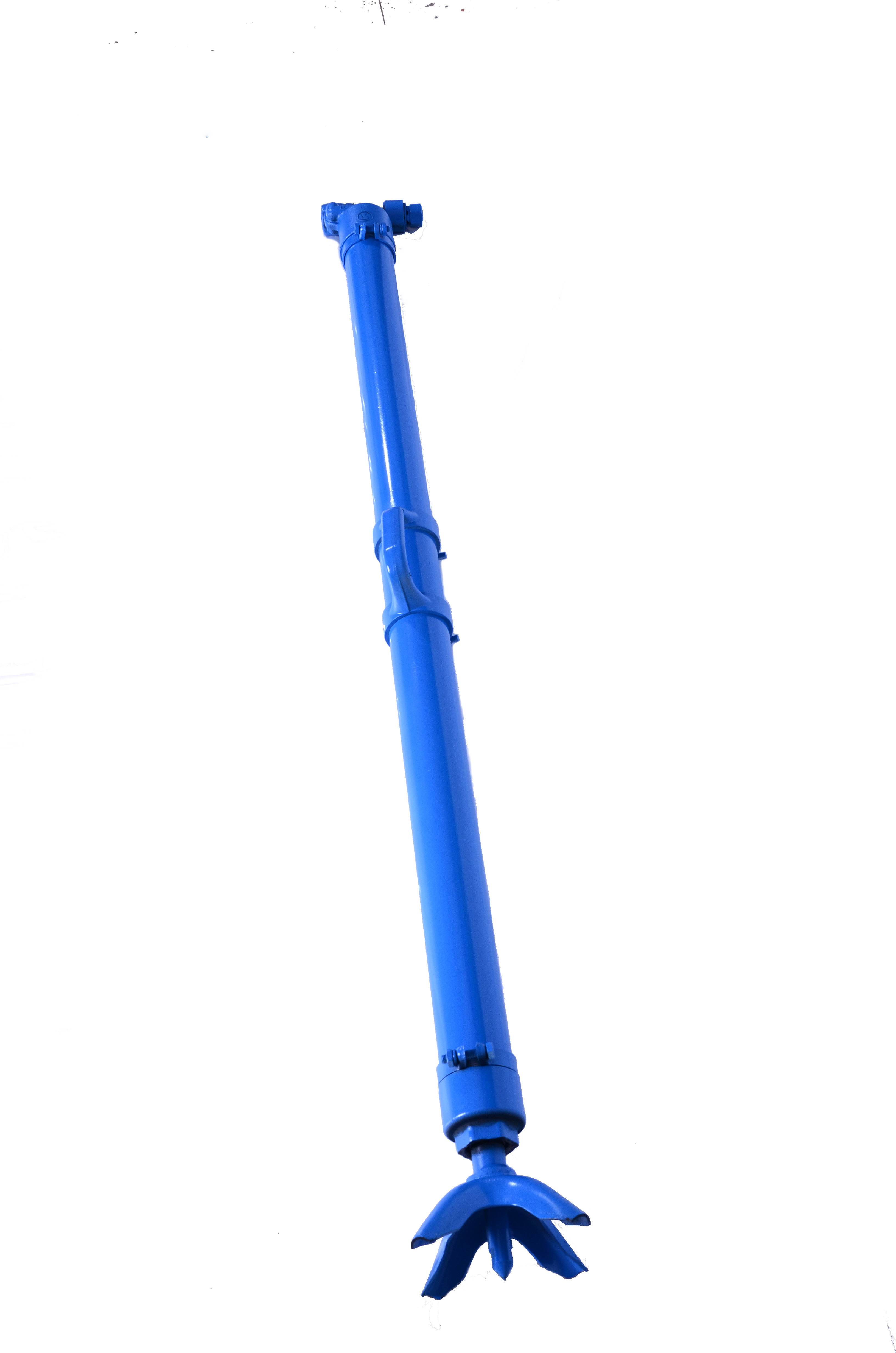

YT24 YT28 pusher leg rock drills always works with support air leg, can be used for any angle drilling.

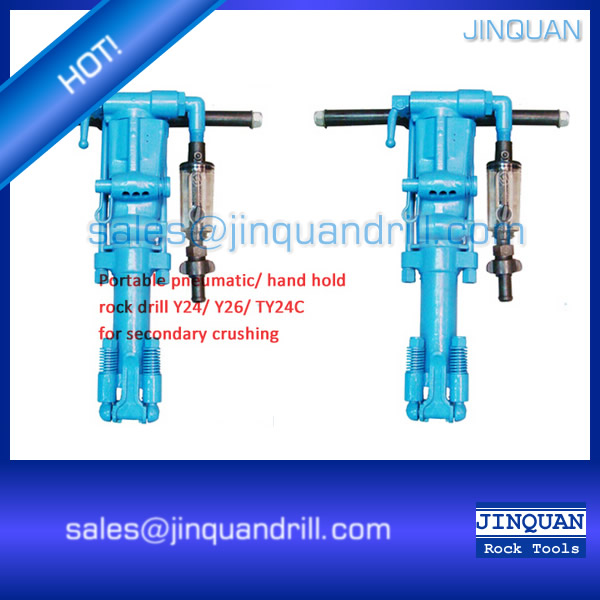

Y6, Y20, Y24, and Y26 hand held rock drills works without air leg, mainly use for downwards drilling.
B. Gasoline rock drilling machine includes: YN27, YN27C and YN27J.
These types of rock drills adapt to outside situations where there is no water, no electronic power and no air compressor. It's a kind of hand held rock drill with gasoline engine, air pump and rotation plumbum equipment for running or stop. It can be used for breaking, drilling, blasting, tamping splitting and ramming.
perforadora YT27
YT27 perforadora
perforadora shenyang YT27
perforadora neumática YT27
perforadora YT27 Bolivia

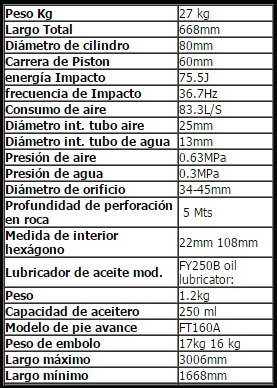

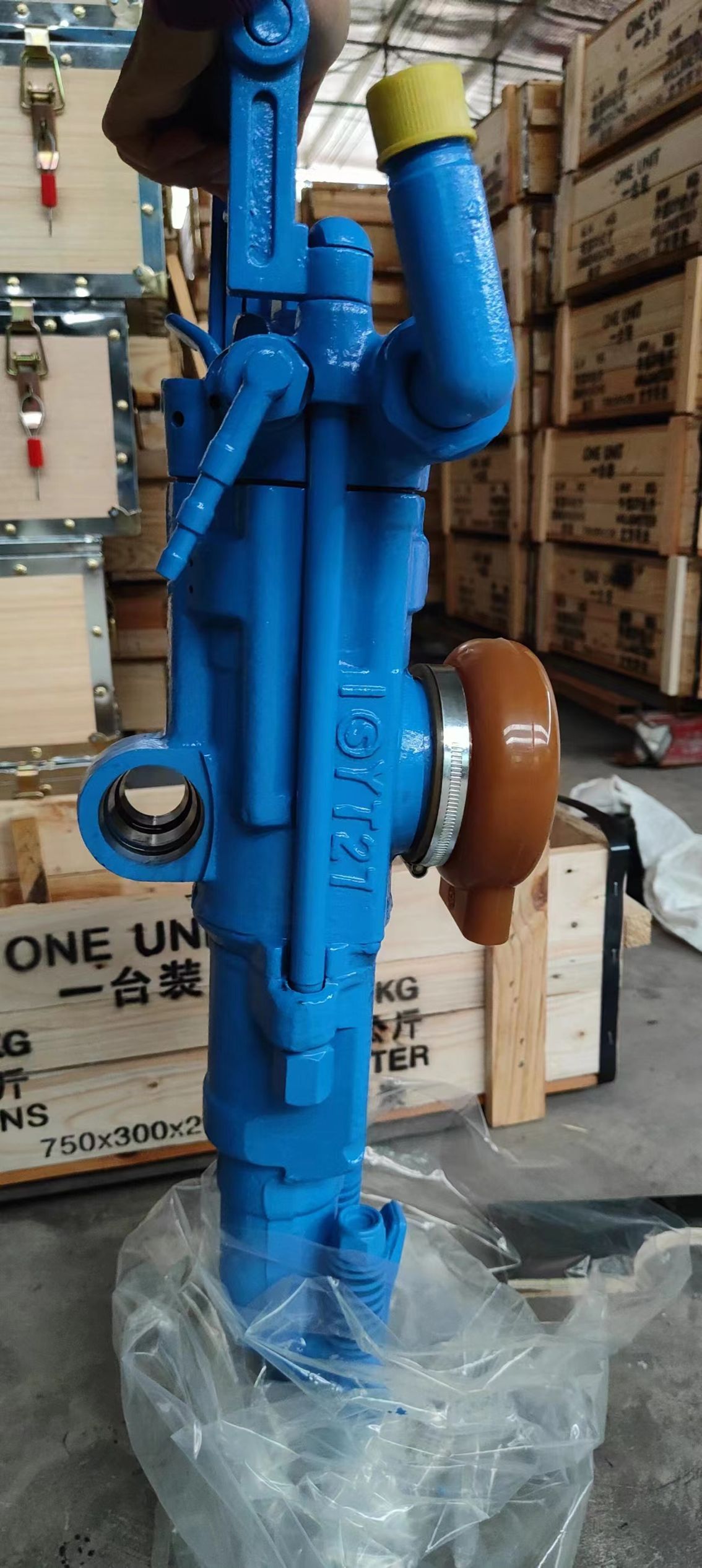

YT27 Rock Drill:

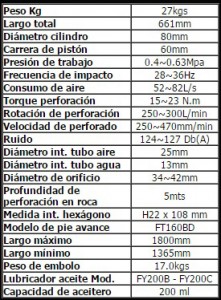

YT28 Jack Hammers:

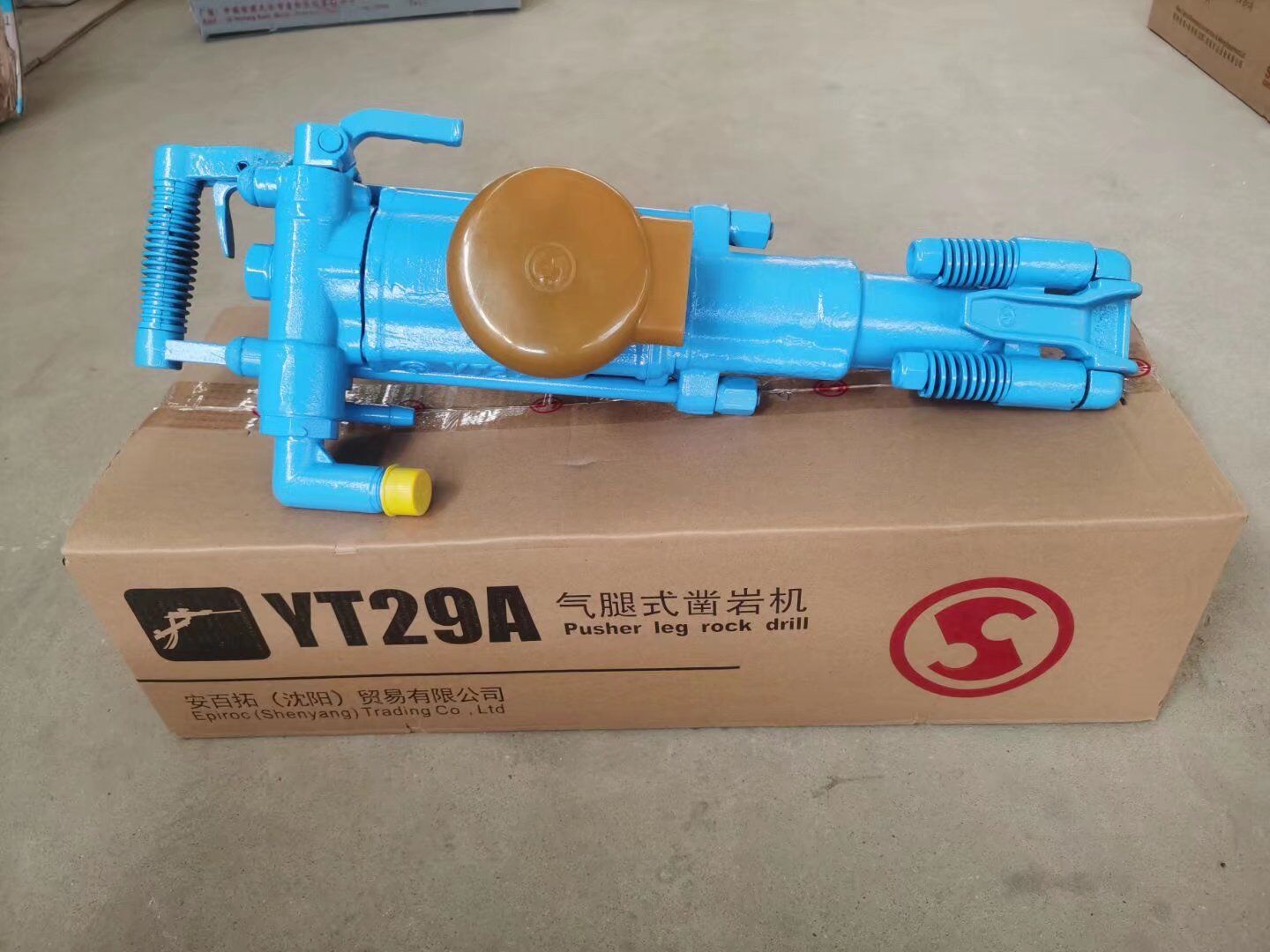

Perforadora Neumática YT29A:
Jinquan Y6 Y19A YO20 Y24 Y26 YT27 YT28 YT29A YN27C YSP45 YT24 YT26 Pneumatic Rock Drill Jack Hammer
A number of patented technology makes our products have many outstanding features: small original driving force, fast speed, stability control, low noise, simple, reliable, easy maintenance, flexible and mobile etc.
Our pneumatic rock drills could be divided into two parts, one is hand-held rock drill, the other is air-leg rock drill. Both of them have excellent drilling performance.
For hand-held rock drills, we have Y6, YO20, Y19A Y24 and Y26. Among them, the Y6, YO20 and Y24 are widely used in quarrying or construction industry.
A.Pneumatic rock drilling machine includes: Y6, YO20, Y24, and Y26(hand held), YT24, YT26, YT27 and YT28 (air leg), YT29A perforadora neumática.
This type rock drills use compressed air as power, mainly used in construction sites, various types of mines, tunnel, railways, water conservancy construction and national defense construction areas for drilling operations.
YT24 YT28 pusher leg rock drills always works with support air leg, can be used for any angle drilling.
Y6, Y20, Y24, and Y26 hand held rock drills works without air leg, mainly use for downwards drilling.
B. Gasoline rock drilling machine includes: YN27, YN27C and YN27J.
These types of rock drills adapt to outside situations where there is no water, no electronic power and no air compressor. It's a kind of hand held rock drill with gasoline engine, air pump and rotation plumbum equipment for running or stop. It can be used for breaking, drilling, blasting, tamping splitting and ramming.
perforadora YT27
YT27 perforadora
perforadora shenyang YT27
perforadora neumática YT27
perforadora YT27 Bolivia
YT27 Rock Drill:
YT28 Jack Hammers:
Perforadora Neumática YT29A:
Specification:
TYPE | YT24 | YT27 | YT28 |
WEIGHT(KG) | 24 | 26 | 26 |
SHANK SIZE(MM) | 22*108 | 22*108 | 22*108 |
CYLINDER DIA(MM) | 70 | 80 | 80 |
PISTON STROKE(MM) | 70 | 60 | 60 |
WORKING PRESSURE(Mpa) | 0.4~0.5 | 0.4~0.5 | 0.4~0.5 |
IMPACT FREQUENCY(Hz) | 34 | 36 | 36 |
AIR CONSUMPTION (L/S) | 55 | 85 | 75 |
AIR PIPE INNER DIA(MM) | 19 | 25 | 25 |
ROCK DRILL HOLE DIA(MM) | 30~45 | 30~45 | 30~45 |
ROCK DRILL HOLE DEPTH(M) | 6 | 6 | 6 |
Specification:
TYPE | YT24 | YT27 | YT28 |
WEIGHT(KG) | 24 | 26 | 26 |
SHANK SIZE(MM) | 22*108 | 22*108 | 22*108 |
CYLINDER DIA(MM) | 70 | 80 | 80 |
PISTON STROKE(MM) | 70 | 60 | 60 |
WORKING PRESSURE(Mpa) | 0.4~0.5 | 0.4~0.5 | 0.4~0.5 |
IMPACT FREQUENCY(Hz) | 34 | 36 | 36 |
AIR CONSUMPTION (L/S) | 55 | 85 | 75 |
AIR PIPE INNER DIA(MM) | 19 | 25 | 25 |
ROCK DRILL HOLE DIA(MM) | 30~45 | 30~45 | 30~45 |
ROCK DRILL HOLE DEPTH(M) | 6 | 6 | 6 |
