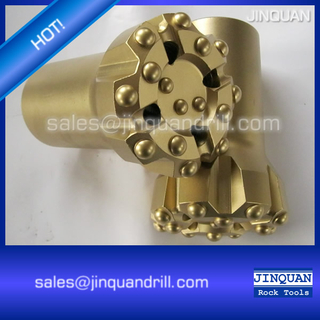

Our GT60 bench and production rock drilling tools, thread GT60 button bits are designed to comply with all kinds of rock formations and drilling site conditions, with longer life, higher penetration rates etc...
GT60-92mm,GT60-96mm,GT60-102mm,GT60-115mm, GT60-118mm, GT60-127mm, GT60-140mm, GT60-152mm etc.
Specifications:
Material: Alloy steel bar 45CrNiMoV and tungsten carbide tips YK05
Body type: Normal body or retrac body
Thread type: R22,R25,R28,R32,R38,T38,T45,T51,ST58,ST68,GT60
Diameter: 32mm-127mm
Button bit shape: spherical and ballistic
Face shape: Flat shape and drop-center shape
Main threaded button bits are:
R22-32mm, R22-36mm, R22-38mm, R22-41mm;
R25-33mm, R25-35mm, R25-37mm, R25-38mm, R25-41mm, R25-43mm, R25-45mm;
R28-37mm, R28-38mm, R28-41mm, R28-43mm, R28-45mm, R28-48mm;
R32-41mm, R32-43mm, R32-45mm, R32-48mm, R32-51mm, R32-54mm, R32-57mm, R32-64mm, R32-76mm;
T38-64mm, T38-70mm, T38-76mm, T38-89mm, T38-102mm, T38-127mm;
T45-76mm, T45-89mm, T45-102mm;
T51-89mm, T51-102mm,T51-115mm,T51-127mm.
Retract & Drop Center Button Bits T45-76mm, QYA1376-T45
Key parameter:
Description | BUTTON BITS T45-D76MM RETRACT DROP CENTER |
Diameter(mm) | 76 |
Product Code | 1632-76T45-511/812-45-51 |
No. of buttons | 13 |
Buttons×button diameter(mm) | 5*11mm/8*12mm |
Button Angle° | 35 |
Flushing hole | 4 |
Weight approx. kg | 3.2 |
T45 Coupling
Description | T45 Coupling D63mm | T45 Coupling D66mm |
Diameter(mm) | 63 | 66 |
Length(mm) | 210 | 210 |
Product Code | 31-T45-63-210-23 | 31-T45-66-210-23 |
Weight approx. kg | 2.7 | 3.2 |
Coupling sleeves
Other name is coupling, when using rock drills with male shank adapters and a conventional drifter rod, a coupling is required to join the adapter to the rod, ensuring the ends touch for efficient energy transmission. Coupling are also used to connect several rods to each other in the same way. Couplings have a middle stop to prevent over-threading on to the drill rod. We can manufactures semi-bridge, full bridge coupling sleeves for the percussive tools.
