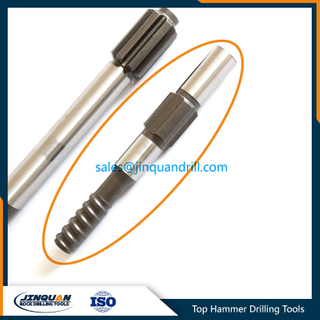

Shank Adapter for Ingersoll-Rand URD 475, URD 550, VL120, EVL 130, VL140 And F16
| Thread | R32 | T38 |
| Length(mm) | 380 | 380 |
| Flushing Hole(mm) | 14 | 14 |
| Weight approx kg | 3.1 | 3.6 |
| Part No. | 4VL120-44R32-0380-23 | 4VL120-44T38-0380-23 |
Shank adaptor or shank adapter, the task of the shank adapter is to transmit rotation torque, feed force, impact energy and flushing medium to the drill string.
The shank adapters from Jinquan are designed to withstand the high impact porwer of modern rock drills and made from specially slected material which also is hardened through carburizing. Around 300 different shank adapters suitable for different rock drills are currently available from Atlas Copco series drifters, Ingersoll Rand series drifters, Sandvik/Tamrock series drifters, Furukawa series drifters, Garden Dever series drifters etc.
Supply many various type shank adaptors which are suitable for all popular drifters and top hammers in the world, such as Atlas Copco series drifters, Tamrock series drifters, Garden Dever series drifters etc. The main thread types of shank adaptors include R32, R38, T38, T45, T51 etc.
Male shank adapters are ideal for drifting, tunneling & extension applications where high bending stresses are present, and female shank adapters are used when the drilling space is limited and the total feed length is important.
Drill drifter types:
Atlas Copo, Boart Longyear, Bohler, Furukawa, Gardner Denver, Holman, Ingersollrand, Joy, Montabert, Secoma, Tamrock, Toyo, etc. Other drifter type of shank adaptor by given sample or drawing is also available. If you want to know more about our shank adapt or other product related to shank adaptor, pls visit our website or contact me marketing at sinodrills dor kom, I will send you more information.
