Top hammer rock drilling tools - button bits suppliers,drill bits,drill rods

Quantity:
  • R22, R25, R28, R32, R38, T38, T45, T51, ST58, ST68, T60 Thread
  • Jinquan
  • China
  • Ply-wooden cases, cartons or bundles
  • Within 15-25 days according to your order quantity
  • 1
  • T/T
We are a professional productions base of series of fast moving rock drilling tools, mining tools, DTH drill tools, DTH bits, DTH hammers, DTH drill pipes, construction tools and excavating coal pick cutter tools, we can also produce other products according to the customers requirements. We sincerely welcome our friends of both home and abroad to come for business talks.

button bits, dth bits, dth hammer, dth drilling, drill bit, drill rod, tapered bit, thread bits, taper rod, rock bit, rock bits, shank adapter, shank adaptors, coupling sleeves, integral drill rod, tapered drill rod, extension rod, speed rods, mf rod, male-female drill rod, cutter bits, pick holder, coal mining tools, rock drilling tools, rock drills, screw air compressor, rock drilling rigs.

About products:

1. Integral Drill Steels (Integral Drill Rods)
Shank H22x108mm, H19x108mm, standard hex. Bit diameters include 20-42mm.

2. Tapered Drilling Tools (Tapered Drill Steel)
Including:
Shank H22x 108mm, (6, 7, 11, 12 degree taper) taper rods in most lengths.
A comprehensive range of button bits, cross bits and chisel bits with (6, 7, 11, 12 degree taper).
Bit diameter: 28mm-57mm.

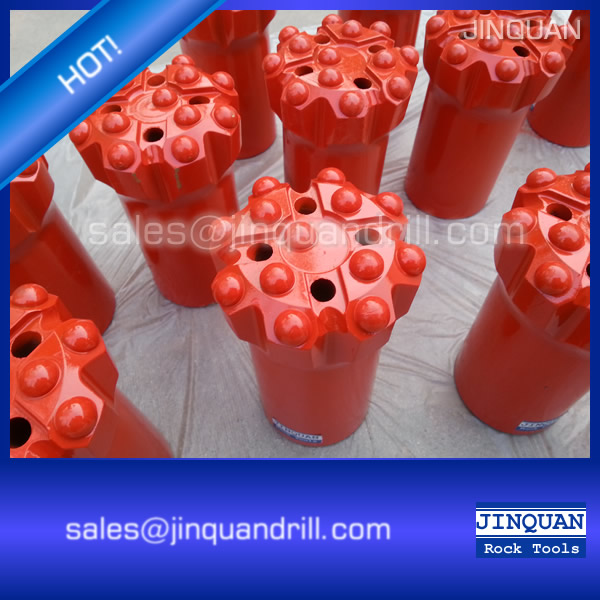

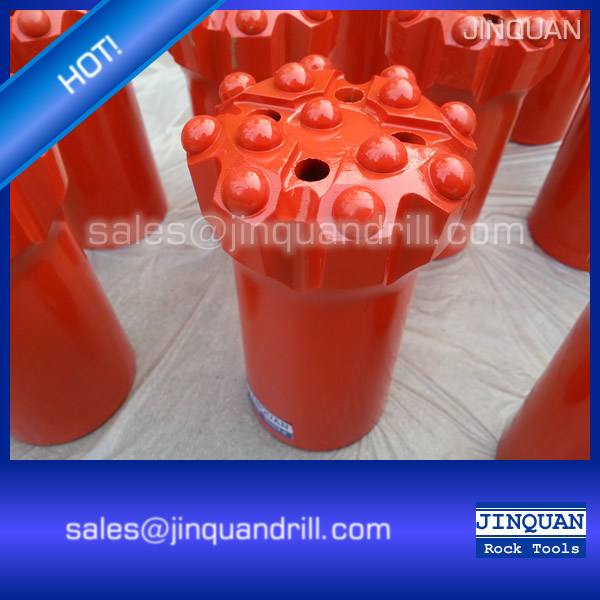

3. Threaded Button Bits
Button bit, face design: Flat face, Drop centre, Normal and Retrac body; Tungsten carbide buttons: spherical, ballistic and conical. (Threaded R22 R25 R28 R32 T38 T45 T51 T60; bit diameter: 32mm-152mm).

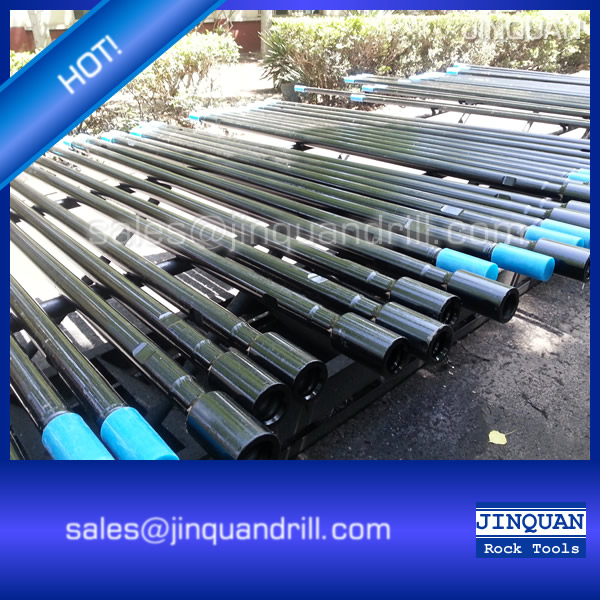

4. Thread Extension Steel Bars for Rock Drilling
Our thread drill rod mainly include MF rod, extension rod, drifer rod, shank end adapter rod, own high fatigue strength, elasticity, rigidity and toughness, but strength and toughness is contradictory. The thread at both ends of the thread rods is a whole set of drilling tools, it's the key part of rod. It is well known that the performance of the material could be played well only after going through heat treatment to release its maximum potential, therefore, the choice of material and heat treatment process are important on an equal basis.

5. Couplings Sleeves
Jinquan’s rock drilling coupling sleeves are manufactured with a middle stop to prevent walking along the thread. Include couplings sleeve (Threaded R22, R25, R28, R32, R38, T38, T45, T51).

6. Shank Adapters
R32, R38, T38, T45, T51 thread rock drilling shank adaptors are carburized and manufactured with tight tolerances and controlled straightness, which are suitable for all popular drifters and top hammers in the world, such as Atlas Copco series drifters, Tamrock series drifters, Garden Dever series drifters etc.
