Shenyang S Brand YT27 Pneumatic Rock Drill Spare Parts, FT160A Air Leg, Piston, Driver, Shank Sleeves, Oil Lubricator

Jinquan produces YT27 rock drills and rock drill spare parts include FT160A Air Leg, shank sleeves, driver, piston, Shenyang S brand YT27 oil lubricator etc..
Price: $ 85
Availability:
Quantity:

  • YT27, YT28, YT29A

  • Jinquan

  • 84671900

YT27 Pneumatic Air Leg Rock Drill and Rock Drill Spare Parts:


YT27 rock drill is a kind of high efficiency air leg rock drill machine. It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and national defence project facility. We can also main rock drill spare parts include FT160A Air Leg, shank sleeves, driver, piston, Shenyang S brand YT27 oil lubricator etc..


When it is matched with Model FY250 Oil reservoir and Model FT160A or FT160B Air-leg, it is suitable for wet drilling under various of rocks at aclinic and incline orientation, it can also use in the trolley without Air-leg.


YT27 rock drill

YT27 jack hammer

perforadora YT27

YT27 perforadora

perforadora shenyang YT27

perforadora neumática YT27

perforadora YT27 Bolivia

pneumatic jack hammers

pneumatic rock drill


Weight 27 kg

Outside dimension(L× W× H) 668× 248× 202mm

Cylinder dia 80mm

Piston stroke 60mm

Impact energy ≥ 75.5J

Impact frequencey ≥ 36.7Hz

Air consumption ≤ 83.3L/S

Air pipe (inner dia) 25mm

Water pipe (inner dia) 13mm

Air pressure 0.63MPa

Water pressure 0.3MPa

Bore dia 34-45mm

Bore depth 5m

Shank dimensions(hex× Length) 22× 108± 1mm

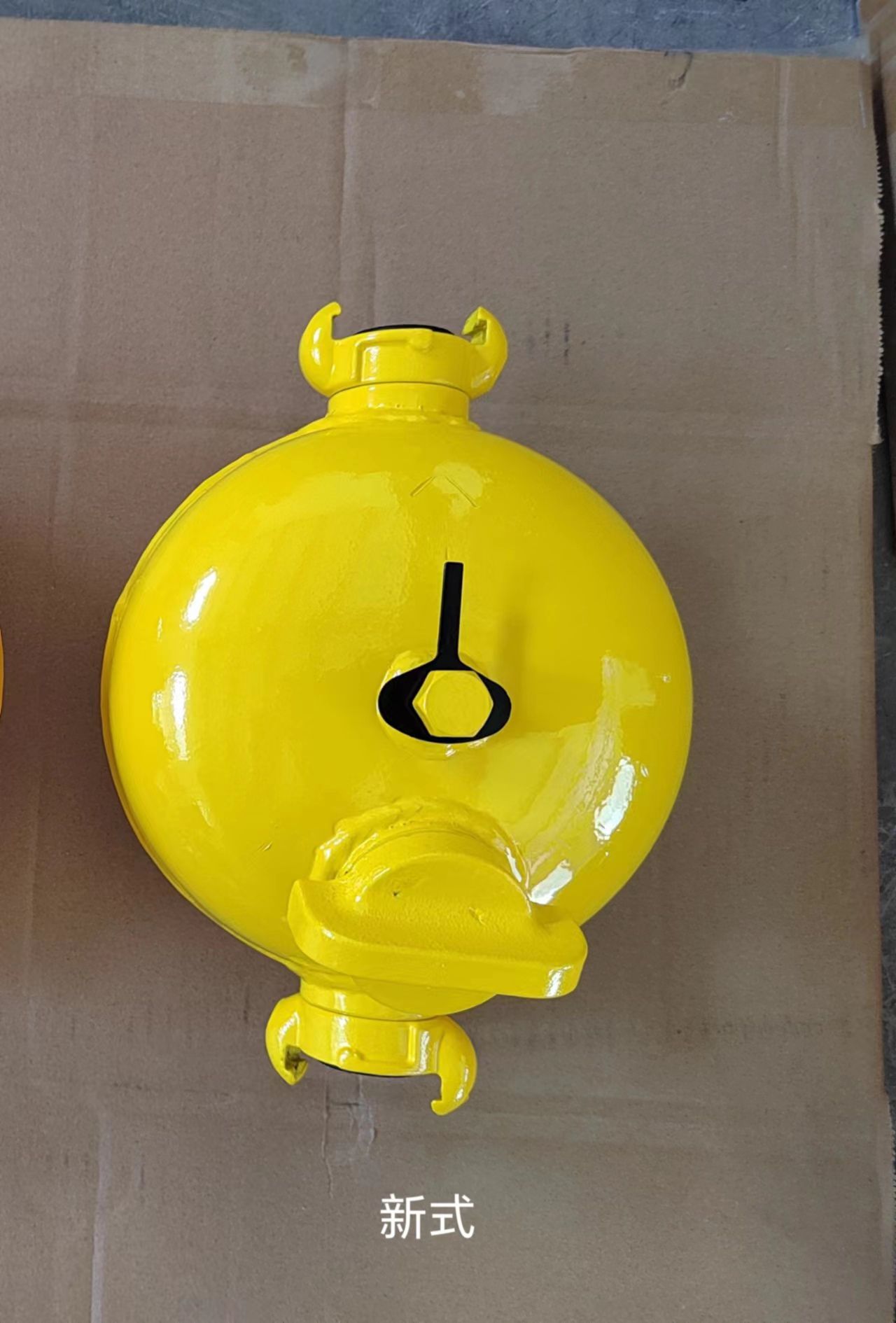

Model FY250B oil lubircator

Weight 1.2kg

Oil capacity 0.25L

Air leg FT160A FT160B

Weight 17kg 16 kg

Length: Max 3006mm 2526mm

Min 1668mm 1428mm

Propulsion stroke 1338mm 1098 mm

Axis thrust (max) 2000N 2000N
