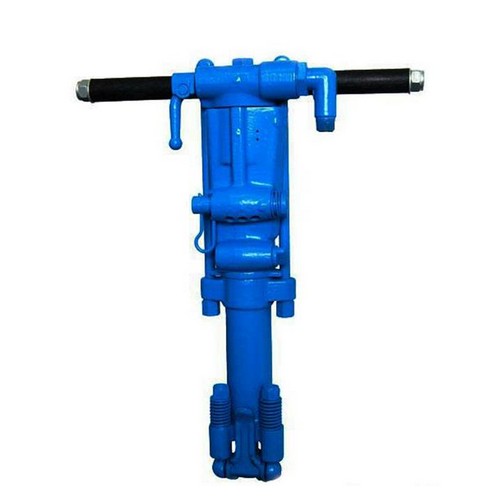

Y26 Pneumatic Hand Held Rock Drills Air Jackhammers

Quantity:
Inquire Add to Basket

  • Y26 Model
  • Jinquan
  • China
  • Paper Boxes
  • Within 15-25 days according to your order quantity
  • 1
  • T/T
Y26 type hand-held rock drills can be used be to digging dry or wet by horizontal holes, vertical holes or angling holes on medium-hard rock or hard rock.

Y26 Pneumatic Hand Held Rock Drills:
Weight 26Kg.
Length 650mm.
Cylinder dia. 65mm.
Impact frequency: >=23HZ.
Air consumption<=47L/s.
Warranty Term:
Complete Machine: 1 year.

Weight 26kg
Overall length 650*534*125
Dia.of cylinder 70mm
Stroke 70mm
Rock drill frequency ≥23HZ
Idling rotational speed ≥200r/min
Inner Dia.of air pipe 19mm
Inner Dia.Of the water pipe 13mm
Strike power ≥30J
Working water pressure 0.3-0.35Mpa
Checking tail size 22*108mm
Air consume of rock drill ≤47L/S
Noise ≤124(db)
Dia.of rock drill hole 34-42mm
Depth of rock drill hole 5mm
