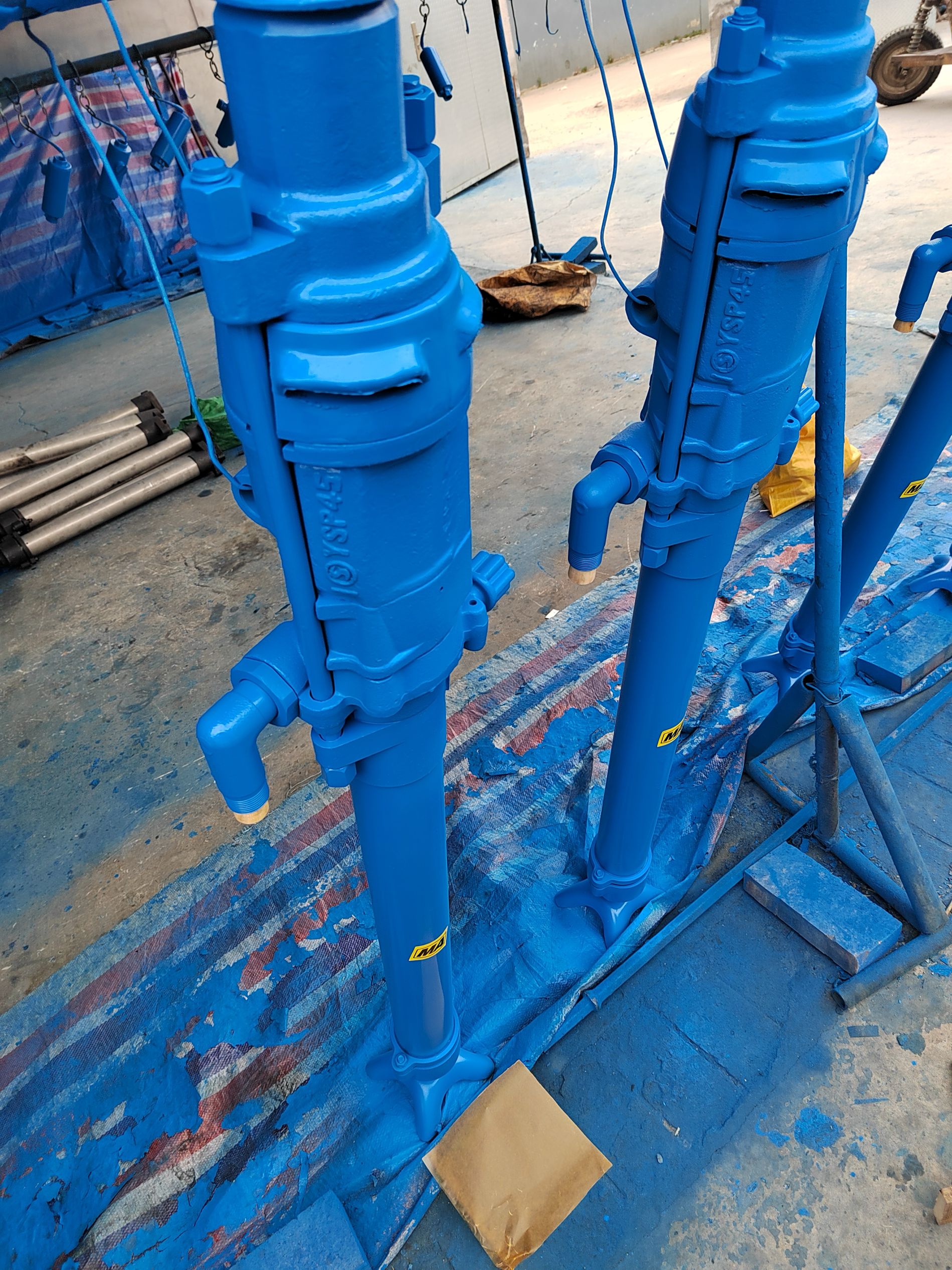

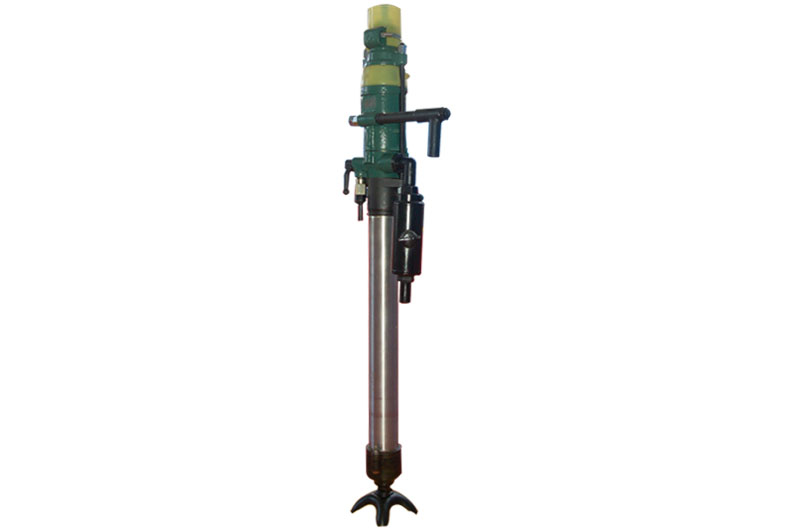

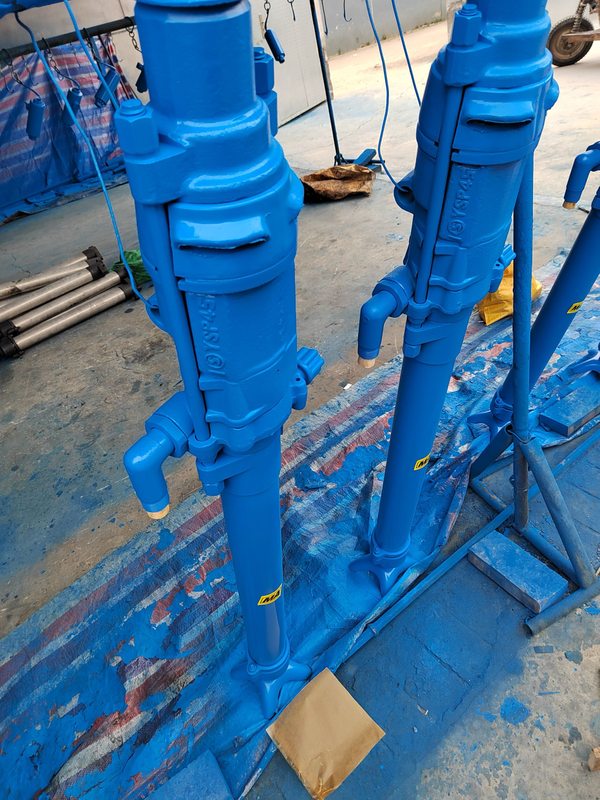

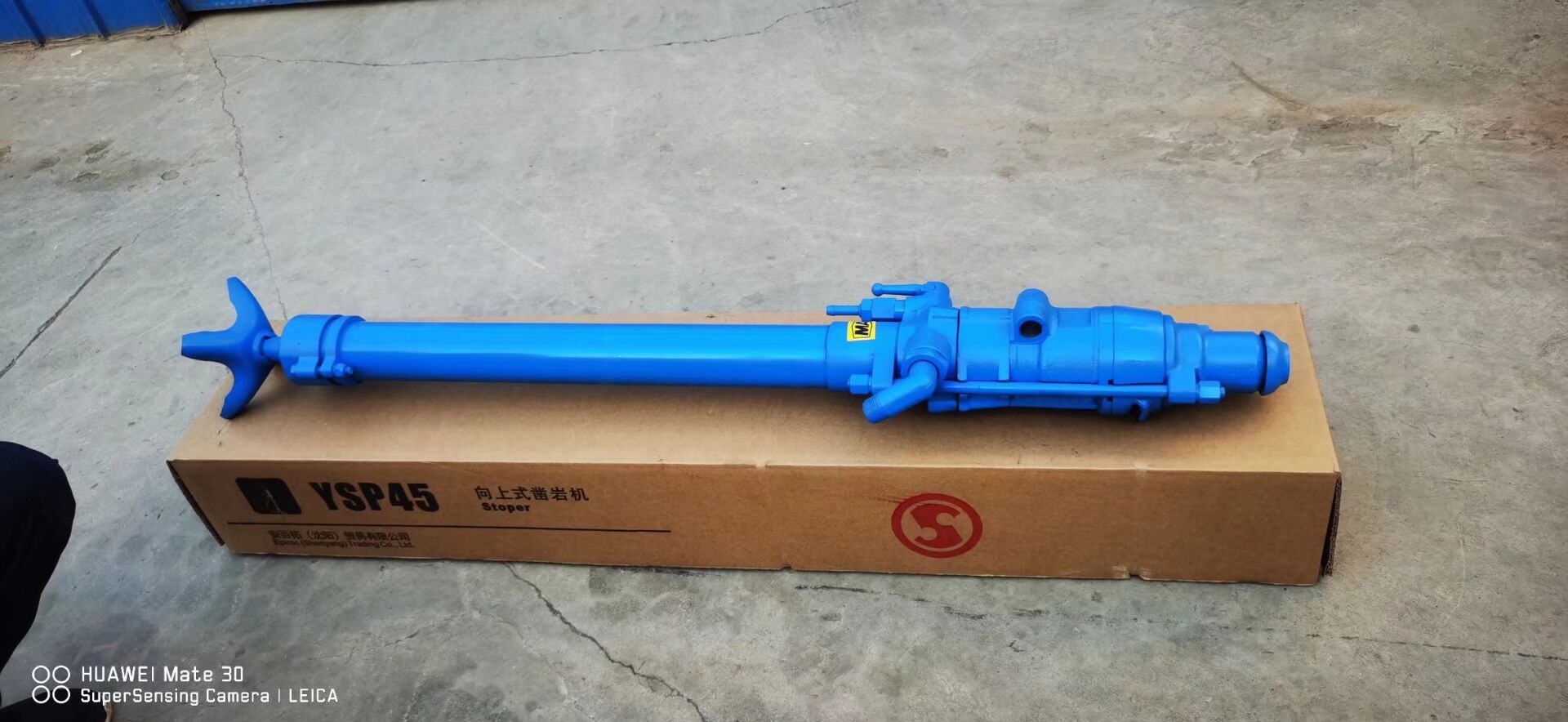

Shenyang YSP45
Shenyang S Brand
84671900
YSP45 Stoper rock drill operate by the air compress repeatedly. The pistion stroke the shank, and then piston turning with the shank. The adjust pressure valve of back head control the pusher, the air leg to inlet air by adjust pressure valve. It has the advantages of simple structure, high reliability, strong adaptability and low cost. The machine has large torque, low noise and long service life. It is mainly used for drilling, blasting and anchor cable holes in earth rock engineering.
Application: tunneling and support in mining, transportation, water conservancy, hydropower and other projects. It is mainly used for quarries - dividing rocks.

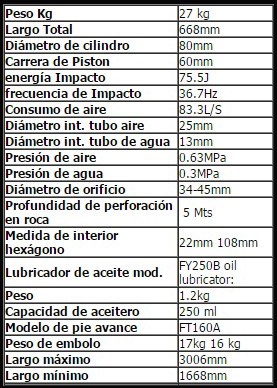

Perforadora Neumática Shenyang YT27:

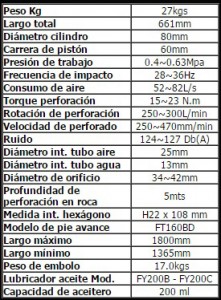

YT28 Rock Drills:
YT29A Air Leg Jack Hammer:
YSP45 Stoper rock drill operate by the air compress repeatedly. The pistion stroke the shank, and then piston turning with the shank. The adjust pressure valve of back head control the pusher, the air leg to inlet air by adjust pressure valve. It has the advantages of simple structure, high reliability, strong adaptability and low cost. The machine has large torque, low noise and long service life. It is mainly used for drilling, blasting and anchor cable holes in earth rock engineering.
Application: tunneling and support in mining, transportation, water conservancy, hydropower and other projects. It is mainly used for quarries - dividing rocks.
Perforadora Neumática Shenyang YT27:
YT28 Rock Drills:
YT29A Air Leg Jack Hammer:
Specification:
Weight: 44kg
Length 1420*390*160mm
Cylinder Dia 95mm
Piston Stroke 47mm
Air Leg Push Stroke 750mm
Leg cylinder inner Dia 74mm
Work pressure 0.4-0.63Mpa
Air consumption 83L/S
Impact frequency 47Hz
Rotation Speed 350r/min
Air pressure 0.5Mpa
Air Pipe Inner Dia 25mm
Water Pipe Inner Dia 13mm
Hole Drilling Dia 34-42mm
Max Deepth 5m
ShankSize H22*108mm
FY250A Oil Lubricator:
Weight 2.5kg
Oil Capacity 0.52L
Specification:
Weight: 44kg
Length 1420*390*160mm
Cylinder Dia 95mm
Piston Stroke 47mm
Air Leg Push Stroke 750mm
Leg cylinder inner Dia 74mm
Work pressure 0.4-0.63Mpa
Air consumption 83L/S
Impact frequency 47Hz
Rotation Speed 350r/min
Air pressure 0.5Mpa
Air Pipe Inner Dia 25mm
Water Pipe Inner Dia 13mm
Hole Drilling Dia 34-42mm
Max Deepth 5m
ShankSize H22*108mm
FY250A Oil Lubricator:
Weight 2.5kg
Oil Capacity 0.52L
