B87C, TPB60, TPB90
Jinquan
84671900

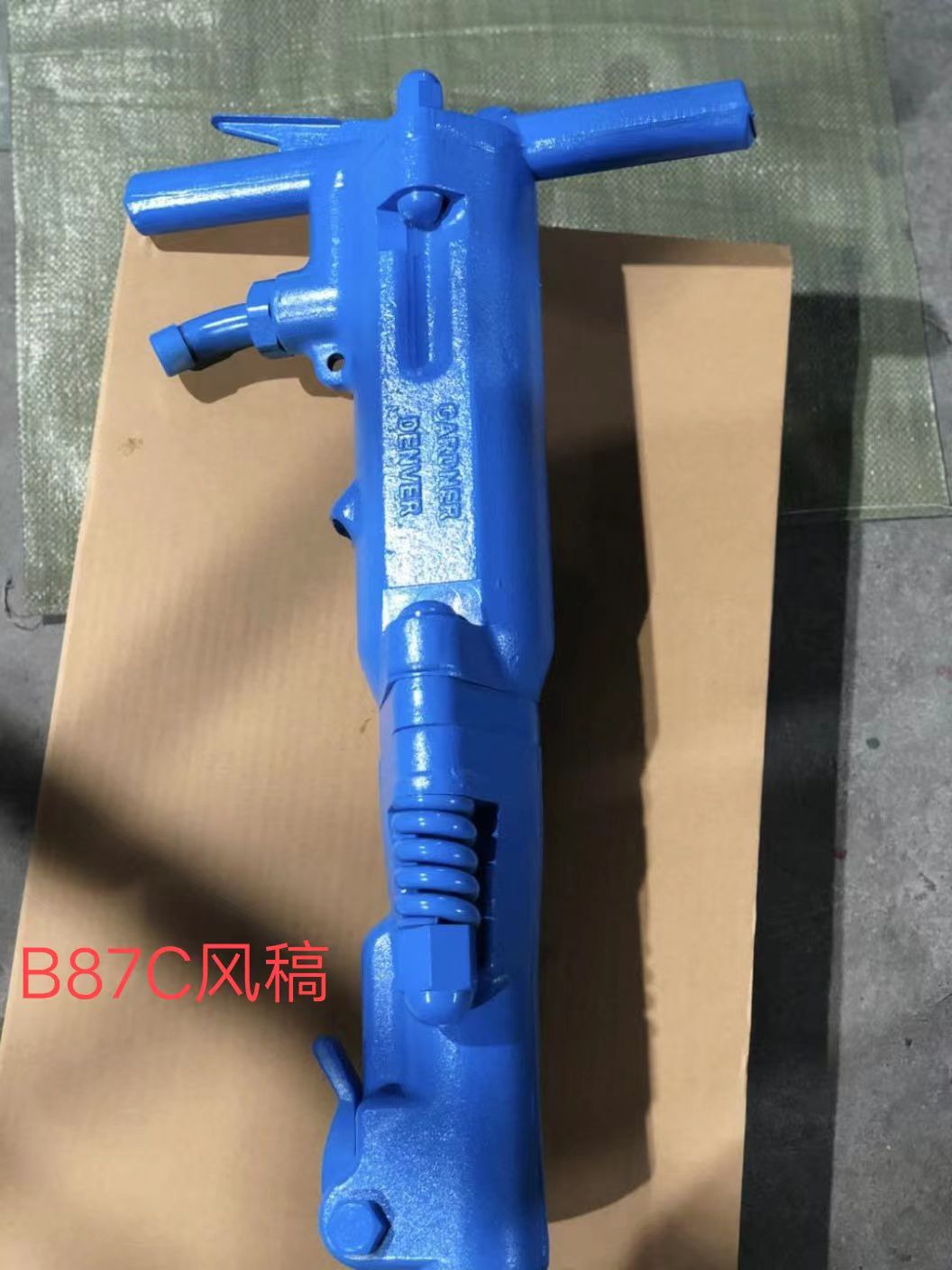

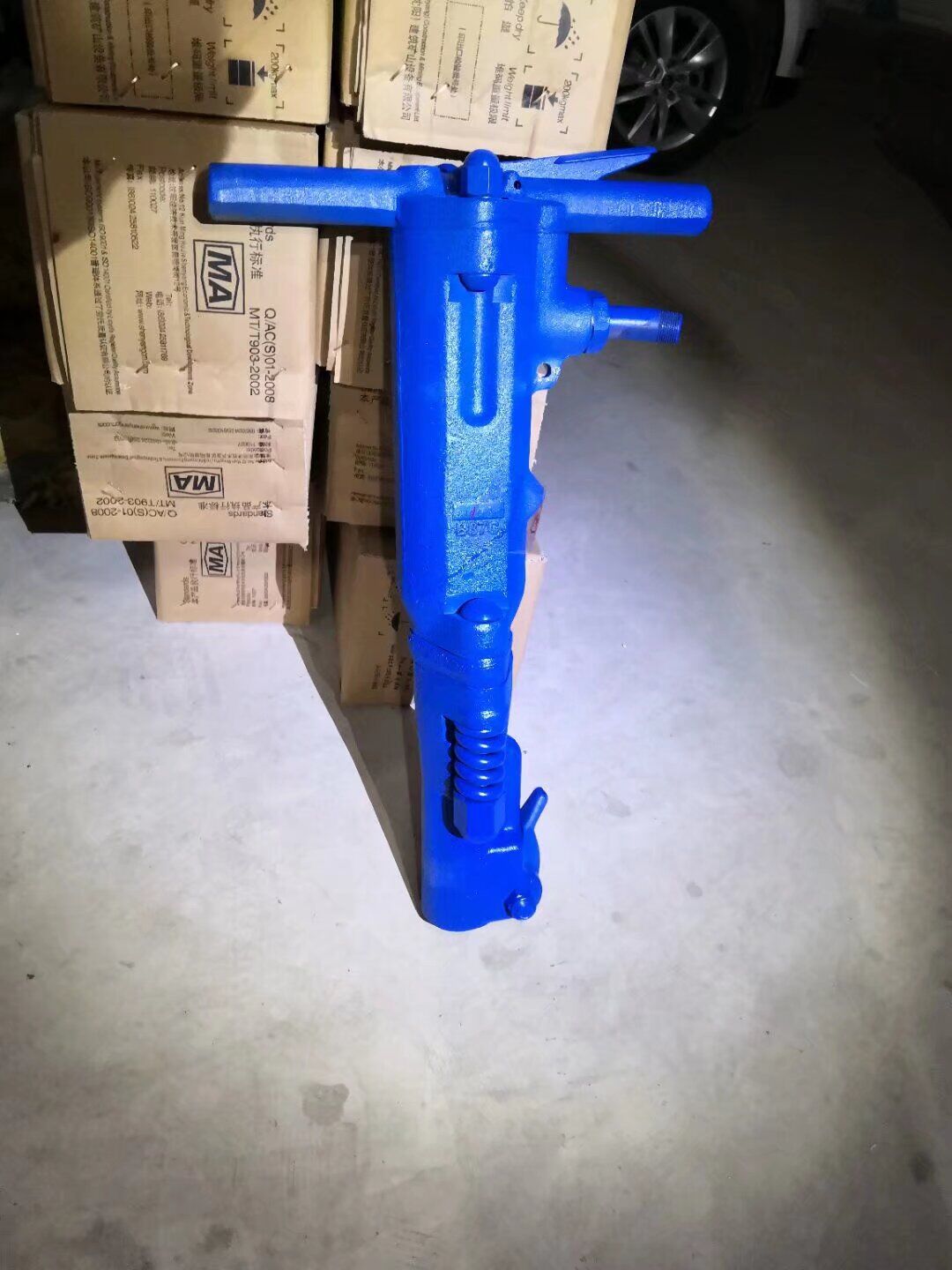

B87C, TPB60, TPB90 pneumatic breaker is a powerful pneumatic tool used in breaking ferroconcrete, rocks and asphalt. Boasting greater efficiency and durability, it suits the requirements of breaking outsized, super-thick and hard objects. It is ideal machinery for the substructual construction of mines, bridges, roads, civil infranstructure, water pipes and electricity grids.

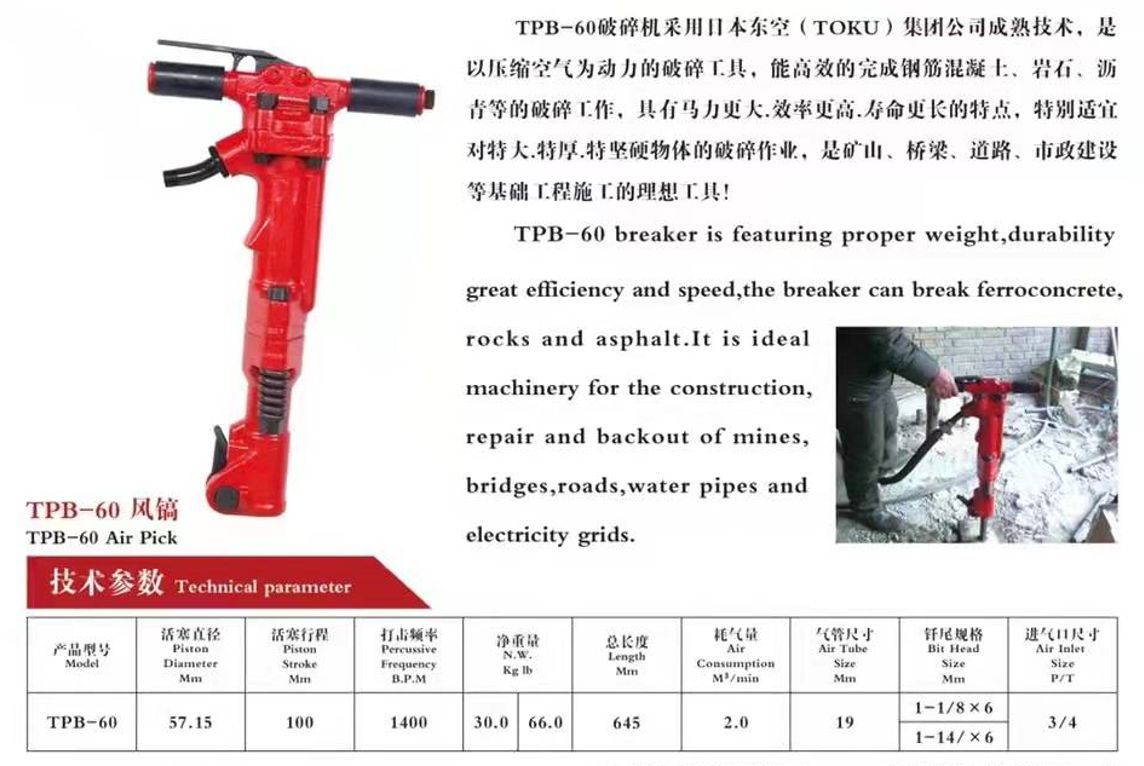

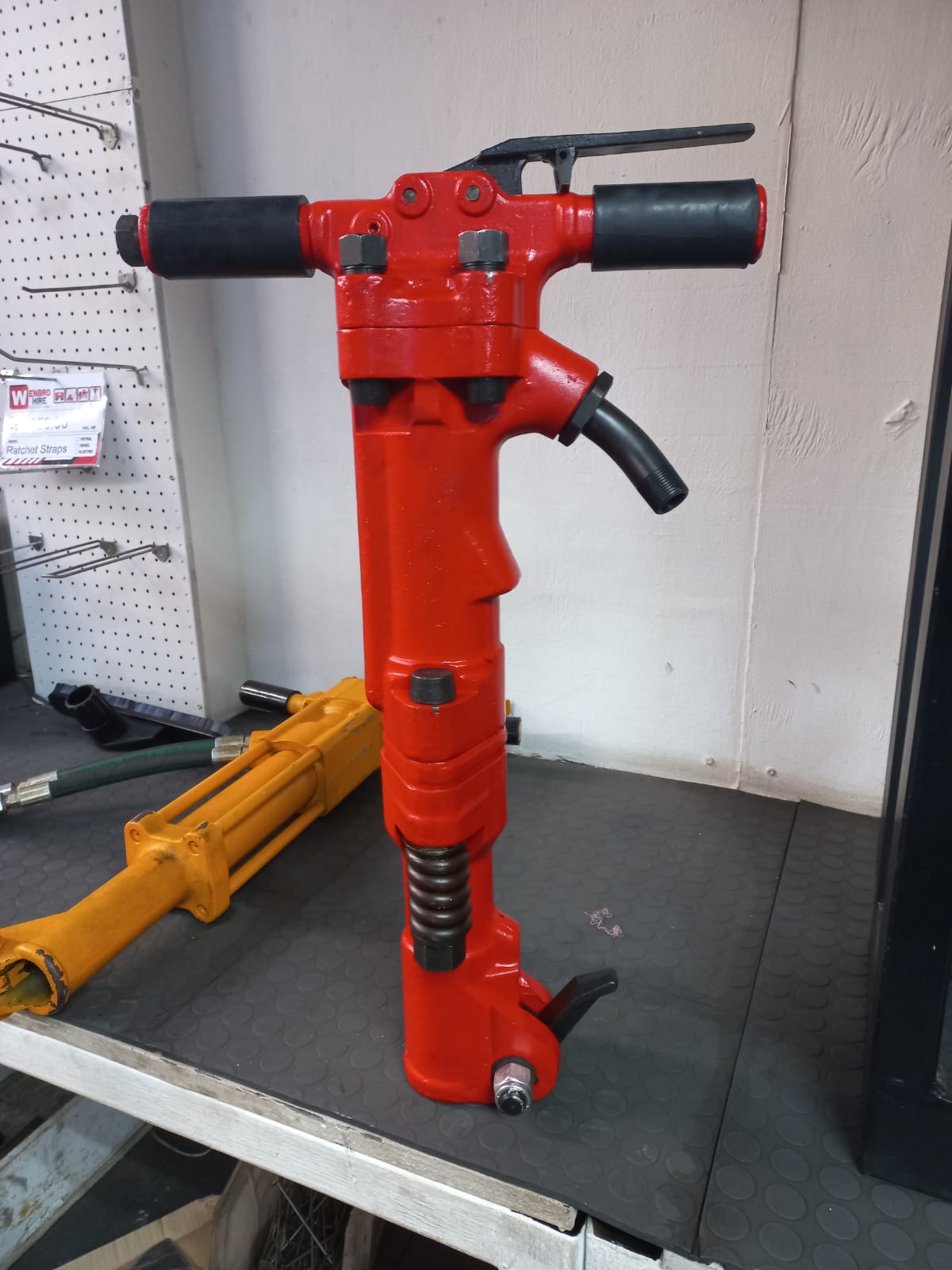

There are full lines of models for choice: TPB-60, TPB-90, TCA-100, B47, B67C, B87C, SK10, etc...
B87C, TPB60, TPB90 pneumatic breaker is a powerful pneumatic tool used in breaking ferroconcrete, rocks and asphalt. Boasting greater efficiency and durability, it suits the requirements of breaking outsized, super-thick and hard objects. It is ideal machinery for the substructual construction of mines, bridges, roads, civil infranstructure, water pipes and electricity grids.
There are full lines of models for choice: TPB-60, TPB-90, TCA-100, B47, B67C, B87C, SK10, etc...
Specification:
TYPE | TPB90 | TPB60 | B87C | RB777 |
WEIGHT(KG) | 42 | 42 | 39 | 37 |
LENGTH(MM) | 723 | 723 | 686 | 733 |
CYLINDER DIA(MM) | 66.67 | 57.15 | 63.5 | 57 |
AIR COMSUMPTION(L/S) | 37 | 33.4 | 55 | 34 |
WORKING PRESSURE(Mpa) | 0.63 | 0.63 | 0.63 | 0.63 |
AIR PIPE INNER DIA(MM) | 19 | 19 | 19 | 19 |
PISTION STROKE(MM) | 152 | 100 | 100 | 189 |
SHANK SIZE-1 | 28*152MM | 28*152MM | 28*152MM | 32*152MM |
1 1/8 * 6 INCH | 1 1/8 * 6 INCH | 1 1/8 * 6 INCH | 1 1/4 * 6 INCH | |
SHANK SIZE-2 | 32*152MM | 32*152MM | 32*160MM | |
1 1/4 * 6 INCH | 1 1/4 * 6 INCH |
Specification:
TYPE | TPB90 | TPB60 | B87C | RB777 |
WEIGHT(KG) | 42 | 42 | 39 | 37 |
LENGTH(MM) | 723 | 723 | 686 | 733 |
CYLINDER DIA(MM) | 66.67 | 57.15 | 63.5 | 57 |
AIR COMSUMPTION(L/S) | 37 | 33.4 | 55 | 34 |
WORKING PRESSURE(Mpa) | 0.63 | 0.63 | 0.63 | 0.63 |
AIR PIPE INNER DIA(MM) | 19 | 19 | 19 | 19 |
PISTION STROKE(MM) | 152 | 100 | 100 | 189 |
SHANK SIZE-1 | 28*152MM | 28*152MM | 28*152MM | 32*152MM |
1 1/8 * 6 INCH | 1 1/8 * 6 INCH | 1 1/8 * 6 INCH | 1 1/4 * 6 INCH | |
SHANK SIZE-2 | 32*152MM | 32*152MM | 32*160MM | |
1 1/4 * 6 INCH | 1 1/4 * 6 INCH |
