Down Hole DTH Hammers - Drilling, Water Well, Water Well, Foundation Boring, Mining

Price: $ 988
Availability:
Quantity:

  • COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc.

  • Jinquan

  • 82071990

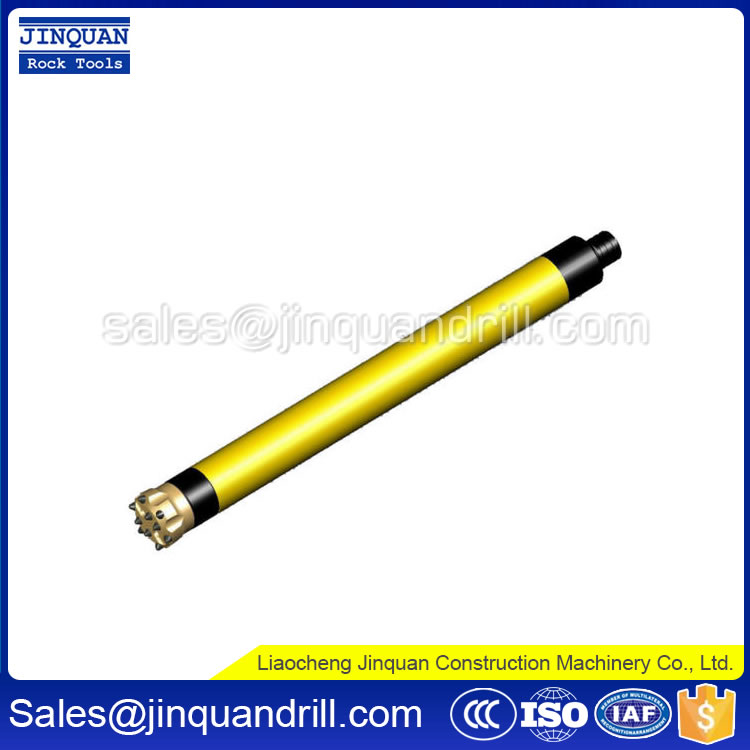

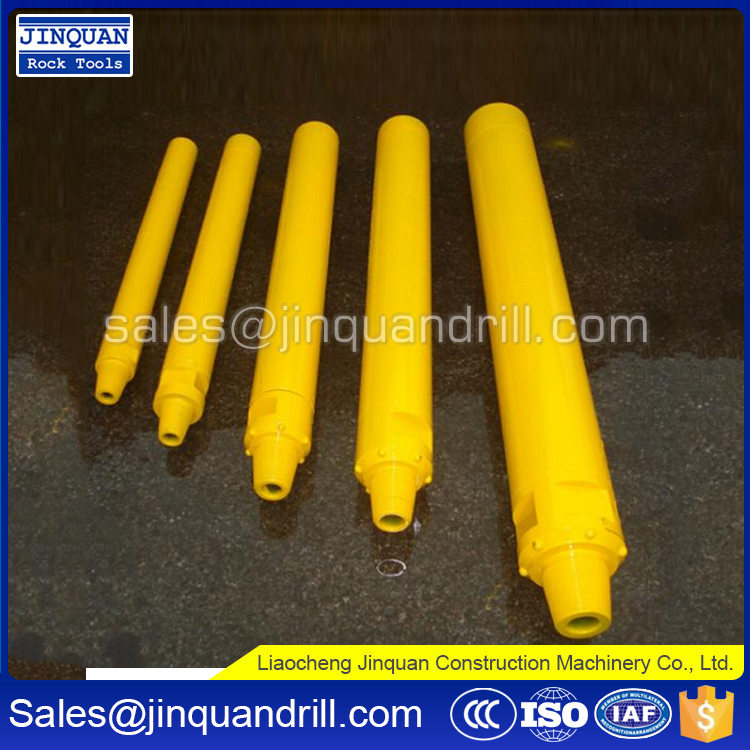

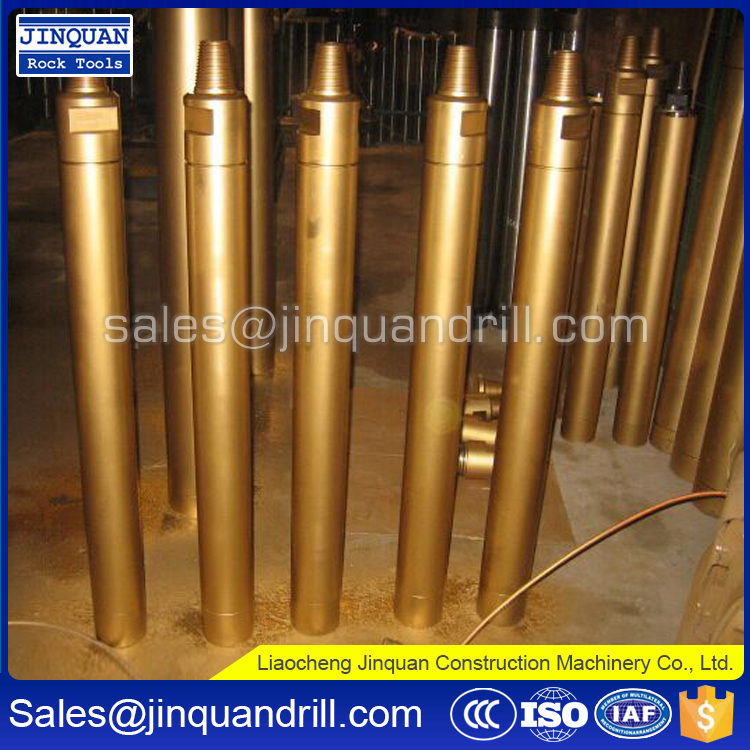

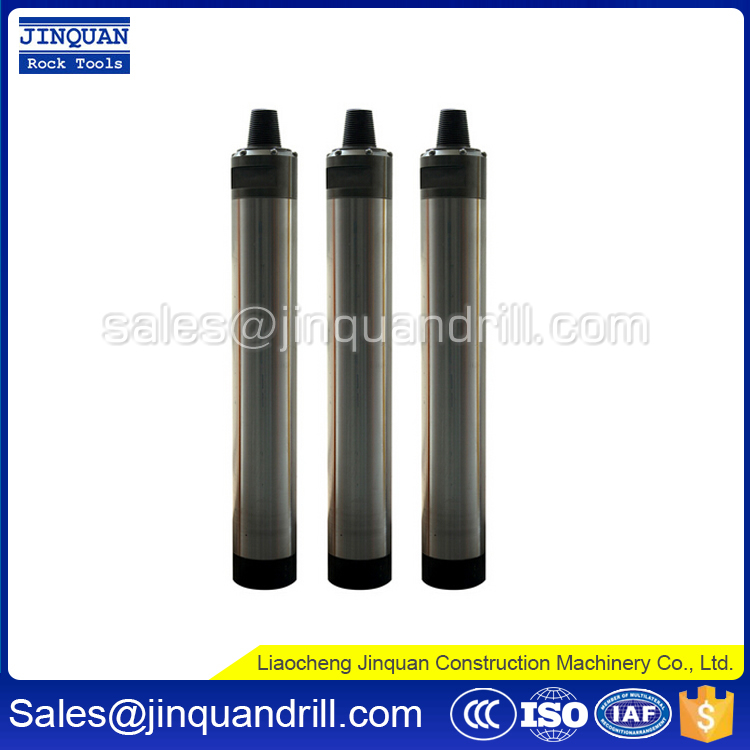

Name: Down Hole DTH Hammers
Series:CIR, BR, COP,DHD,MISSION,QL,SD,NUMA
Package: Ply-wooden case
Delivery time: 15 days

Specification: Weight (kg) External diameter (mm) Connection thread Hole rang (mm) Impact rate Recommended rotation speed
Low air pressure DTH hammer CIR type 5 ~22 50~180 CIR 55~200 820 rpm
Middle air pressure BR & COP type 10~30 70~110   85~115
3 inch DTH hammer
COP34/QL30 etc
24.5 81 API 2 3/8” Reg 90~110 28Hz (at 17 bar) 28 r/min
4 inch DTH hammer
COP44/DHD340 etc
39.2 99 API 2 3/8” Reg 110~150 27Hz (at 17 bar) 25~40 r/min
5 inch DTH hammer
COP54/Mission50 etc
71.5 125 API 2 3/8” or API 3 1/2” Reg 135~165 25Hz (at 17 bar) 20~30 r/min
6 inch DTH hammer
COP64/QL60 etc
98 142 API 3 1/2” Reg 152~216 23Hz (at 17 bar) 15~25 r/min
8 inch DTH hammer
COP84/SD8 etc
188 180 API 4 1/2” Reg 203~305 20Hz (at 17 bar) 15~20 r/min
