Y24
Jinquan
84671900

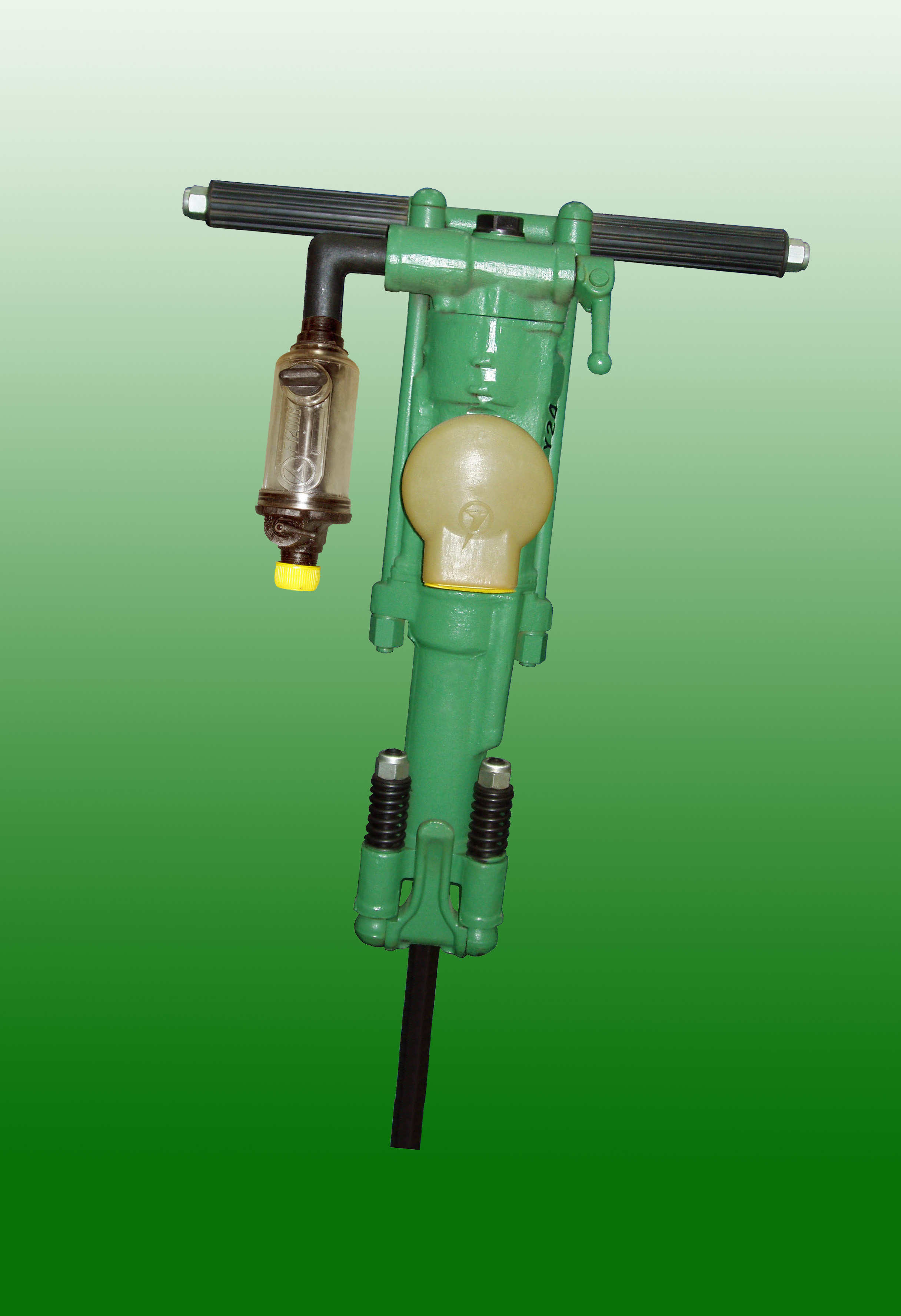

Portable Hand Hold Rock Drill Y24:
Y24 Hand-held Rock Drill is widely used for dry drilling in the medium-hard and hard rock(f=8-18). It's suitable for drilling works in surface mine, quarry for boulder blasting and other dry drilling working. FY200B oil reservior is matched with this rock drill to ensure the fine lubrication.
Advantages:
1. Higher efficiency
2. Lower noise
3. Stronger impact frequency
4. Lighter weight
5. Longer life of wearing parts
6. Better economic returns
7. Environment protection
Portable Hand Hold Rock Drill Y24:
Y24 Hand-held Rock Drill is widely used for dry drilling in the medium-hard and hard rock(f=8-18). It's suitable for drilling works in surface mine, quarry for boulder blasting and other dry drilling working. FY200B oil reservior is matched with this rock drill to ensure the fine lubrication.
Advantages:
1. Higher efficiency
2. Lower noise
3. Stronger impact frequency
4. Lighter weight
5. Longer life of wearing parts
6. Better economic returns
7. Environment protection
Specifications Y18 Y24 Y26 YT24 YT28
Weight 18kgs 24kgs 26kgs 24kgs 26kgs
Working Pressure(Mpa) 0.35-0.5 0.4-0.63 0.45-0.65 0.63 0.63
Impact Frequency(HZ) ≥19 ≥27 27 ≥31 ≥37
Air Consumption(L/s) ≤25 ≤55 ≤50 ≤66.7 ≤81
Bore Dia.(mm) 30-40 34-42 32-42 34-45 34-42
Specifications Y18 Y24 Y26 YT24 YT28
Weight 18kgs 24kgs 26kgs 24kgs 26kgs
Working Pressure(Mpa) 0.35-0.5 0.4-0.63 0.45-0.65 0.63 0.63
Impact Frequency(HZ) ≥19 ≥27 27 ≥31 ≥37
Air Consumption(L/s) ≤25 ≤55 ≤50 ≤66.7 ≤81
Bore Dia.(mm) 30-40 34-42 32-42 34-45 34-42
