T51 bench and production drilling tools

Quantity:
  • T51
  • Jinquan
  • China
  • Ply-wooden cases or iron bundles
  • Within 15-35 days according to your order quantity
  • 1
  • T/T

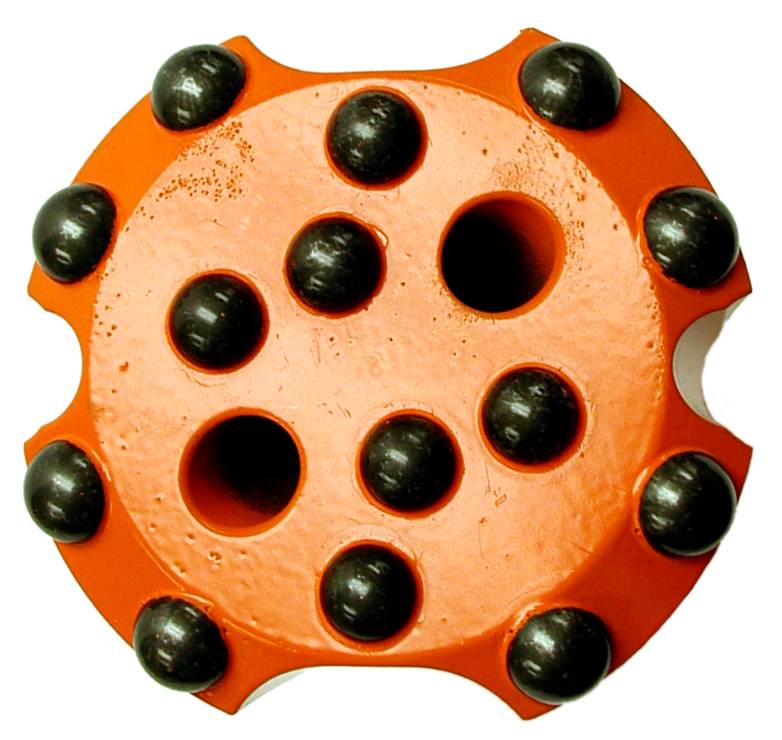

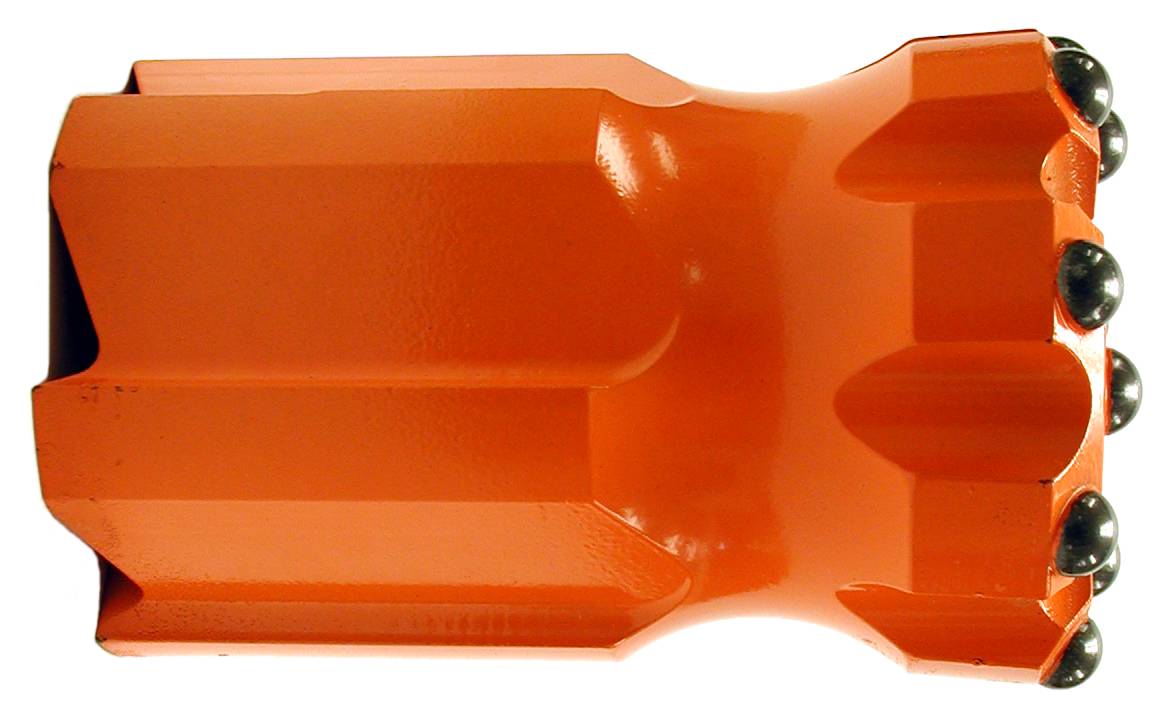

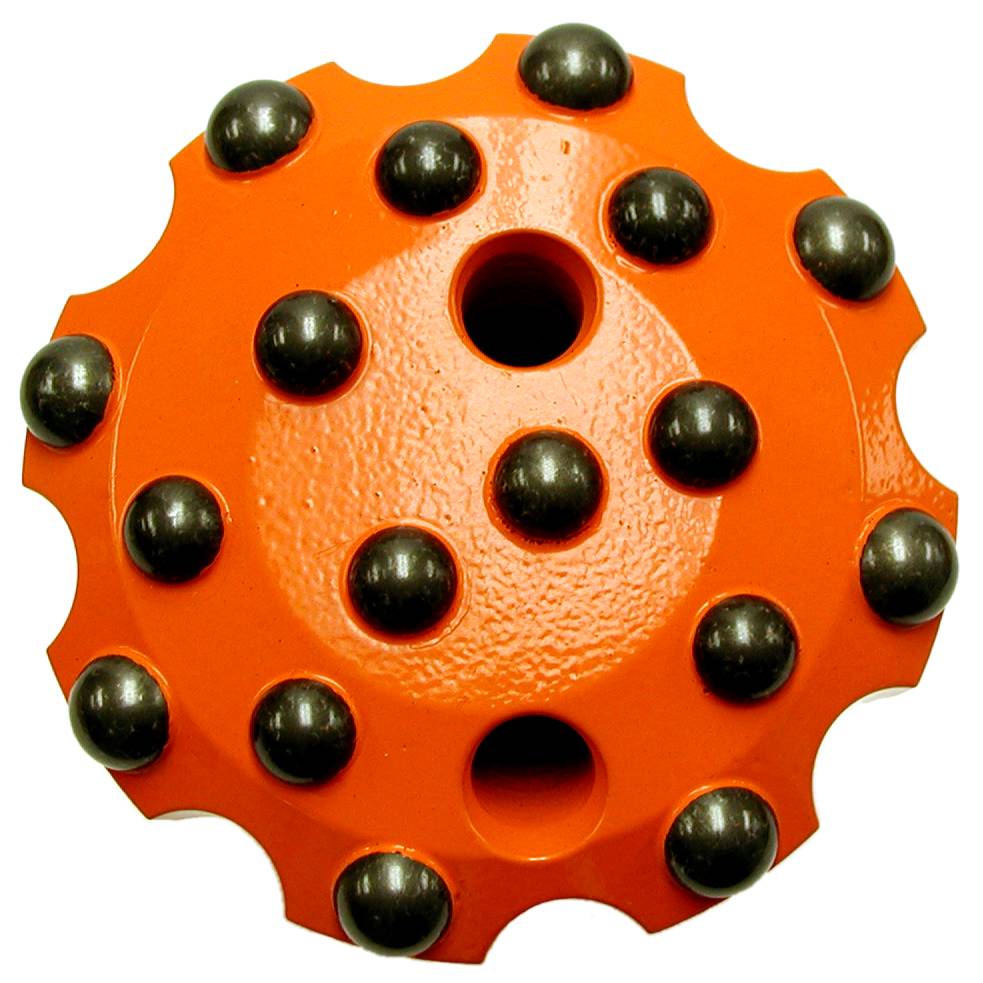

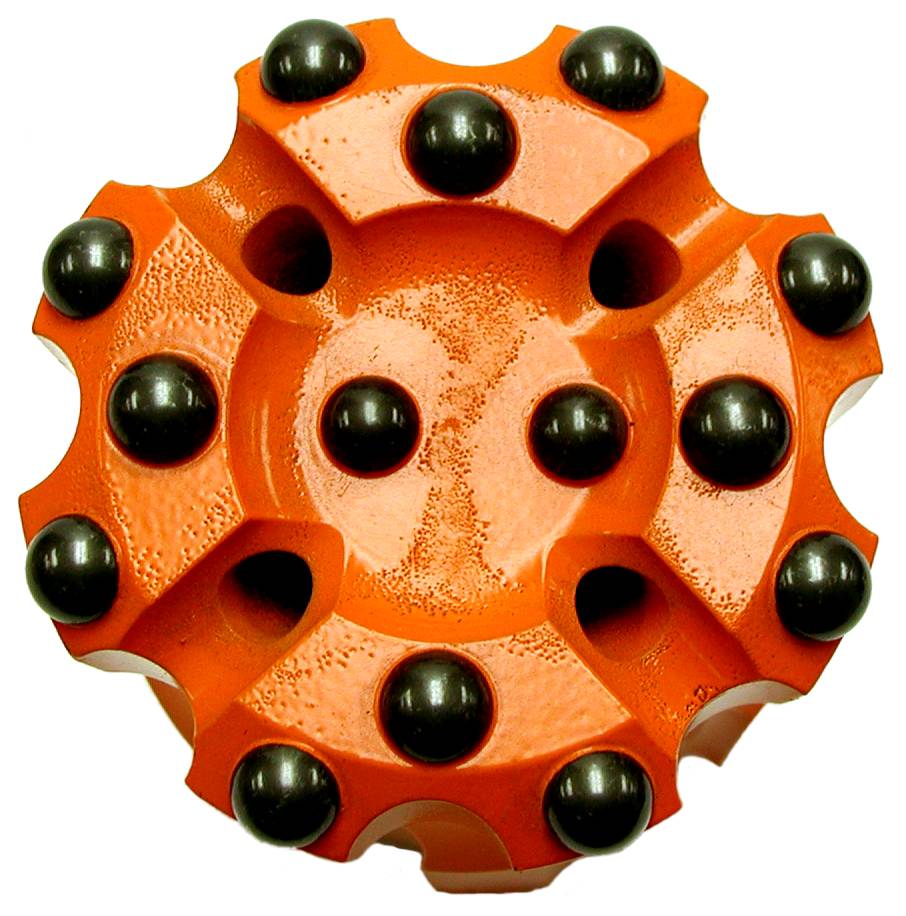

T51 benching & production drilling tools include: T51 retrac button bit, T51 button bits, T51 domer bit for reaming, T51 extension rod, T51 M-F rod, T51 guide tube, T51 coupling, T51 shank adaptor etc.

Drill bits:
R32 thread bit, diameter: 51mm to 76mm.
R35 thread bit, diameter: 48mm to 54mm.
T38 thread bit diam. 64mm to 89mm.
T45 thread bit diam. 76mm to 102mm.
T51 thread bit diam. 89mm to 127mm.
ST58 thread button bit diam. 89mm to 127mm.
ST68 thread button bit diam. 105mmto 140mm.
Reaming bits diam. 102mm to 127mm.

Drill rod:
Extension rod.
R32-Round32-R32 length 3 4 6 8 10 12 ft.
T38 (R38) -und39-T38(38), length 4' 6' 10' 12'ft.
T45 -Round46-T45, length 10' 12' 14' 20' ft.
T51 -Round52-T51, length 12' 14' 20' ft.

MF rod:
MF-Rod R32-Round32-R32, length 3 4 5 6 10 12 14 ft.
MF Rod T38-Round39-T38, length 4 5 6 10 12 14 ft.
MF Rod T45-Round46-T45, length 5 6 10 12 14 20 ft.
MF Rod T51-Round52-T51, length 6 12 14 20 ft.
MF Rod ST58-Round60-ST58, length 12 14 20 ft.

Guide tube:
Guide Tube R32-Round46-R32 length 6 10 ft.
Guide tube T38-Round56-T38, length 6 10 12 ft.
Guide tube T45-Round63-T45, length 6 12 ft.
Guide tube T45-Round76-T45, length 6 12 ft.
Guide tube T51-Round76-T51, length 6 12 ft.
Guide tube ST58-Round76-ST58, length 18 ft.
Guide tube ST58-Round87-ST58, length 14 ft.

T51 Coupling and shank adaptors.
