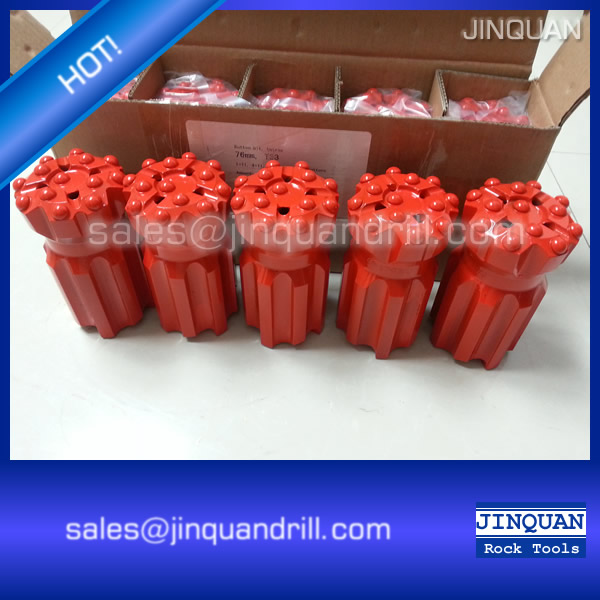

R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60
Jinquan
82071990

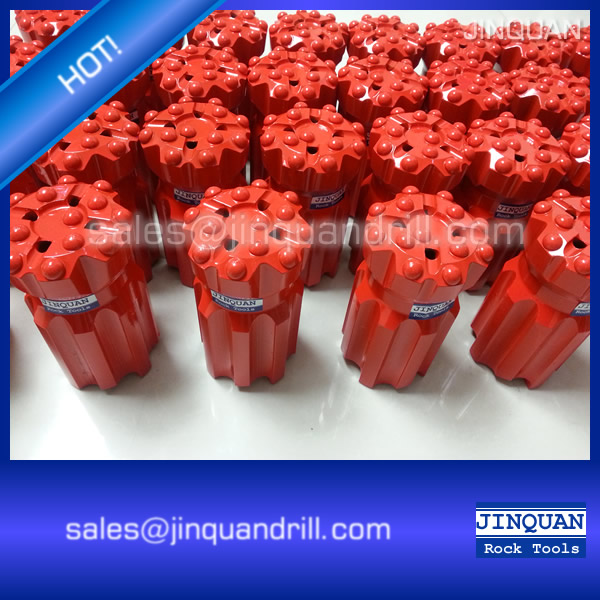

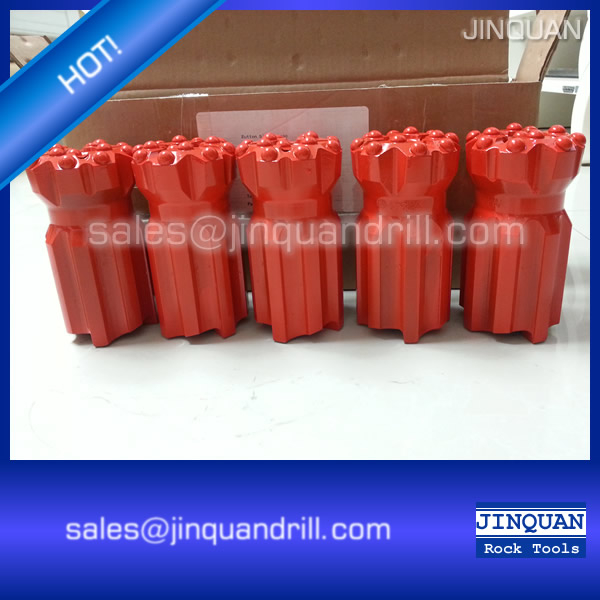

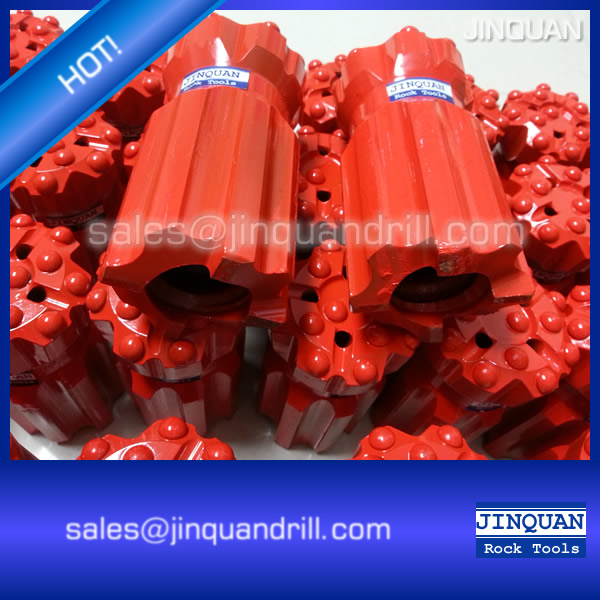

Button Bits: High quality and several thread with various carbide tips are available. All products can be developed upon customers' request.
We can supply all kind of button bits with Rope thread R22, R25, R28, R32, R35, R38 and T thread, T38, T45, T51, ST58, T60 etc.
Main Button Bits: R32-43MM, R32-45MM, R32-51, R32-64, R32-76,T38-64, T38-76MM, T38-89, T38-102MM,T45-76MM, T45-89MM, T45-102MM,T51-89MM, T51-102MM, T51-127 etc.
We can offer you all face design, flat face, drop-center face, normal body and retrac body.
Button Bits: High quality and several thread with various carbide tips are available. All products can be developed upon customers' request.
We can supply all kind of button bits with Rope thread R22, R25, R28, R32, R35, R38 and T thread, T38, T45, T51, ST58, T60 etc.
Main Button Bits: R32-43MM, R32-45MM, R32-51, R32-64, R32-76,T38-64, T38-76MM, T38-89, T38-102MM,T45-76MM, T45-89MM, T45-102MM,T51-89MM, T51-102MM, T51-127 etc.
We can offer you all face design, flat face, drop-center face, normal body and retrac body.
The technical parameter of Normal-type thread button bits: | |||||||
Thread Type | Dia mm | No.of buttons | Buttons*button dia | Flushing hole | Weight kg | ||
Guage | Centre | Side | Centre | ||||
R25 | 38 | 7 | 5*9 | 2*7 | 1 | 1 | 0.6 |
41 | 7 | 5*9 | 2*8 | 1 | 1 | 0.5 | |
45 | 7 | 5*11 | 2*8 | 2 | 1 | 0.7 | |
R28 | 38 | 7 | 5*9 | 2*7 | 1 | 1 | 0.6 |
38 | 6 | 4*9 | 2*8 | 2 | 1 | 0.6 | |
43 | 7 | 5*9 | 2*9 | 2 | 1 | 0.7 | |
R32 | 45 | 7 | 5*11 | 2*8 | 2 | 1 | 0.8 |
48 | 7 | 5*11 | 2*9 | 2 | 1 | 1.0 | |
51 | 7 | 5*11 | 2*10 | 2 | 1 | 1.0 | |
57 | 9 | 6*11 | 3*9 | - | 3 | 1.1 | |
64 | 12 | 8*10 | 4*10 | - | 2 | 1.5 | |
76 | 12 | 8*11 | 4*11 | - | 2 | 1.8 | |
T38 | 64 | 12 | 8*10 | 4*10 | - | 2 | 1.6 |
70 | 10 | 6*11 | 3*11 | - | 3 | 1.9 | |
76 | 13 | 8*12.7 | 5*11 | 1 | 2 | 2.3 | |
89 | 13 | 8*12.7 | 4*11 | - | 4 | 3.0 | |
102 | 14 | 8*14.5 | 6*12.7 | 1 | 4 | 3.9 | |
T45 | 70 | 10 | 6*11 | 3*11 | - | 3 | 2.0 |
76 | 14 | 8*12.7 | 4*11 | 2 | 2 | 2.5 | |
89 | 13 | 8*12.7 | 4*11 | - | 4 | 3.0 | |
102 | 13 | 8*14.5 | 4*12.7 | - | 4 | 6.4 | |
115 | 14 | 8*14.5 | 6*14.5 | 1 | 4 | 5.8 | |
127 | 14 | 8*15.8 | 6*15.8 | - | 4 | 6.6 | |
T51 | 89 | 12 | 8*12.7 | 4*12.7 | - | 2 | 3.5 |
89 | 13 | 8*12.7 | 4*11 | - | 4 | 3.5 | |
102 | 13 | 8*14.5 | 4*12.7 | - | 4 | 5.3 | |
115 | 16 | 9*14.5 | 6*14.5 | - | 3 | 9.7 | |
127 | 20 | 10*14.5 | 10*12.7 | - | 2 | 6.8 | |
127 | 16 | 8*15.8 | 8*14.5 | 1 | 2 | 6.8 |
