YO18
Jinquan
84671900

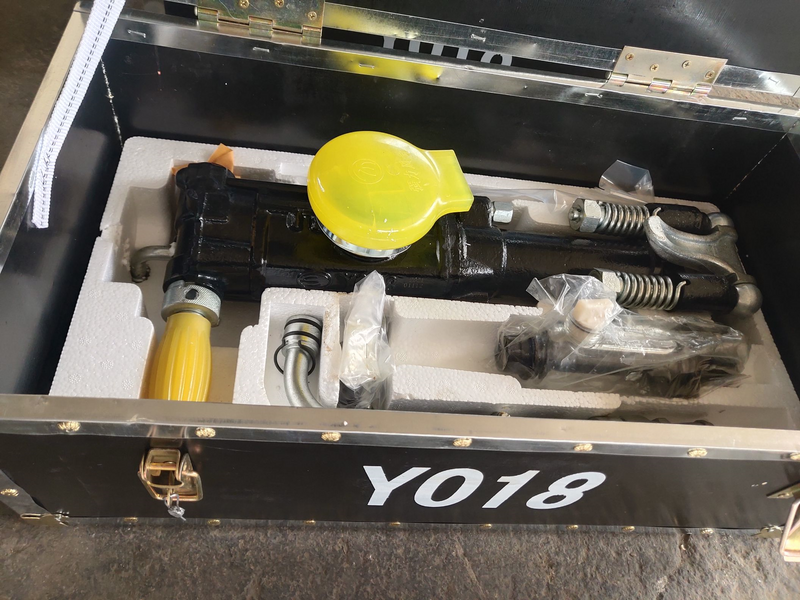

YO18 pneumatic rock drills are mainly used in mine, railway, water irrigation works and quarrying works to drill holes. Rock Drill Jack Hammer is suitable for wet or dry drilling in all kinds of rocks. The jack hammer driller is hand held type for perpedicular and air leg type titling direction.
Advantages: light weight and convenient operation, low consumption and long lift parts, high efficiency and fast drilling volcocity.
YO18 pneumatic rock drills are mainly used in mine, railway, water irrigation works and quarrying works to drill holes. Rock Drill Jack Hammer is suitable for wet or dry drilling in all kinds of rocks. The jack hammer driller is hand held type for perpedicular and air leg type titling direction.
Advantages: light weight and convenient operation, low consumption and long lift parts, high efficiency and fast drilling volcocity.
Item No. | HY18 | YO18 | Y19A | YO20 | YT24 |
Rock Hardness | F=6-20 | F=6-20 | F=6-20 | F=6-20 | F=6-20 |
Piston Stroke | 50mm | 50mm | 54mm | 52mm | 64mm |
Cylinder Diameter | 58mm | 58mm | 65mm | 64mm | 70mm |
Working pressure | 0.4mpa | 0.4mpa | 0.4-0.5mpa | 0.4mpa | 0.5mpa |
Air Consumption | 1.4m³/min | 1.4m³/min | 2.2-2.58m³/min | 1.7m³/min | 2.6m³/min |
Drill Pipe Size | B22*108mm | B22*108mm | B22*108mm | B22*108mm | B22*108mm |
Weight | 18kg | 21kg | 19kg | 21kg | 27kg |
Package size(mm) | 590*280*180 | 590*280*180 | 600*534*106 | 590*280*180 | 740*310*220 |
Optional of pneumatic air leg rock hammer drill | FT100 | FT100 | FT100 | FT100 | FT140 |
